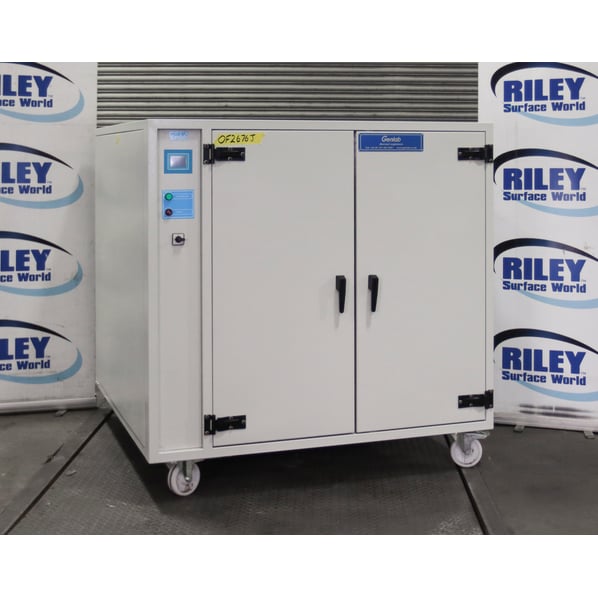

Genlab PRIME XL Laboratory Oven

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
OF2676J
Manufacturer
Genlab
Model
PRI/1600H/TDIG PRIME XL
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
800 x 1400 x 1600mm :1600Litres Capacity
Max Temp
100°C
Other Info
415 Volts : Elements = 3.6kW
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
300-450
External Dimensions (WxDxH mm) [?]
1000 x 2000 x 2100mm
Delivery
Your delivery options

Description

The GenlabPRI/1600H/TDIG PRIME XL is a large capacity, fan‑assisted, precision‑controlled laboratory incubator designed for industrial, R&D, and production environments. It uses the TDIG touch‑screen PID controller with dual independent temperature probes and advanced timer/profile functions.

Temperature Performance

  • Temperature range:Ambient +8 °C to100 °C
  • Control resolution:0.1 °C
  • Control accuracy:<0.4 °C
  • Stability @ 37 °C:±0.2 °C
  • Uniformity @ 37 °C:±1.0 °C
  • Heat‑up time to 37 °C:~20–22 minutes (large‑volume chamber)
  • Recovery after 30‑sec door open:~5 minutes
  • Overheat protection:
      • Independent Pt100A probe
      • Configurable alarm value or deviation band
      • Auto or manual reset

Data logging

  • On‑screen trending (up to 48 hours).
  • USB export (raw data + energy usage).

Timer modes

  • Countdown timer (1–5000 min).
  • 8‑stage profile.
  • 10× profile menus (optional).
  • Cyclic mode.
  • 24/7 real‑time clock.

Construction

  • Internal chamber is polished stainless steel (304).
  • External body is powder‑coated steel.
  • High‑density thermal insulation.
  • Fan‑assisted horizontal airflow.
  • Twin horizontal doors (H‑Series).
  • Shelving is adjustable stainless‑steel shelves.
  • Shelf loading is typically 30–40 kg per shelf (H‑Series standard).

Operating Modes

  • Manual mode.
  • Timer countdown.
  • Profile mode (8‑stage).
  • Multi‑profile (10× menus).
  • Cyclic mode.
  • Real‑time clock scheduling.

 Capacity

  • Internal volume:~1600 litres



pdf icon Print / Download Genlab PRIME XL Laboratory Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
