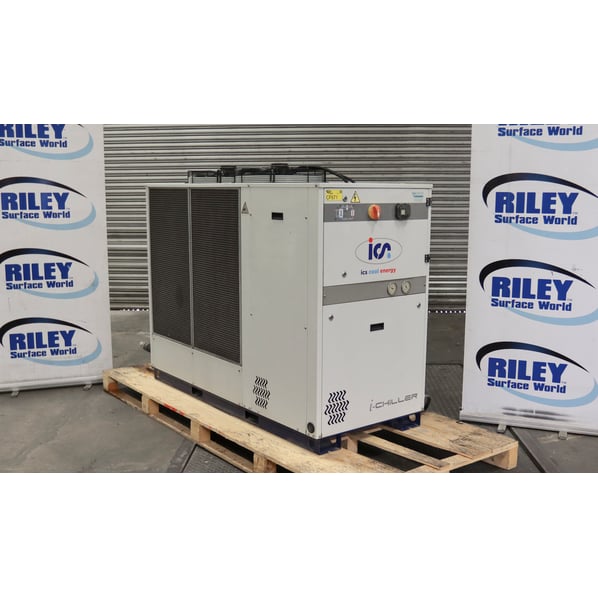

Industrial Cooling Systems (ICS) i-Chiller iC416 Industrial Chiller

Buy Now Add to Quote Contact Us

Description

Higher energy efficiency - Thanks especially to the energy efficient scroll compressors, the oversized evaporator and the refrigerant R410A, The iC-416 achieves leading energy efficiency levels. This is mated to low maintenance needs, ensuring TAEevo is a highly economical long-term proposition
Respect of Environment - The eco-friendly refrigerant R410A (ODP=0) with outstanding heat conductivity, coupled with the low absorbed power level of the scroll compressors, reduce the environmental impact, minimizing the energy waste. Recyclable and high-quality materials ensure respect for the environment and reduces the carbon footprint.
Microprocessor Control - TAEevo Tech features advanced microprocessor control technology, with all models fitted with a unique digital control. A comprehensive digital display keeps the user fully informed concerning the correct operation of the unit, warnings and alarms.
User Friendly - The operation principle of the unit is displayed in a simple and intuitive synoptic sticker with a new design. The meaning of the codes of the main alarms shown on the display of the controller is easy to understand without the help of the instruction manual, thus facilitating the maintenance activities.

Plastics & rubber: Presses, injection moulding, extrusion (sheet & profile), blow moulding, thermoforming, PET.
Lasers: Cutting, welding, profiling, optics, medical, engraving.
Food & drinks: Confectionery, bakeries, distilleries, breweries, wineries, dairies, bottling, carbonation, meat & fish processing, vegetable & salad processing, storage.
Chemical & pharmaceutical: Jacketed vessels, polyurethane foam mixers, natural gas, industrial cleaning, laboratories, healthcare, solvents, paints.
Metal working: Processing & transformation of precious metals, aluminium working & processing.
Mechanical & engineering: Machine tools, welding machines, rolling mills, presses, extruders, cutting, profiling, polishing, electric spark machinery, hydraulic control unit oil cooling, pneumatic transport, heat treatment.
Paper & related applications: Printers, cardboard, labels, plastic film.
Other applications: Ceramics, textiles, wood, rental, air compressor cooling and other applications.

Refrigerant R410A
Hermetic Scroll compressor
High-efficiency finned coil evaporator with copper tubes and aluminium fins installed inside the water storage tank
Axial fans with galvanized steel crescent-shaped blades
Air-cooled condensers (copper tubes/aluminium fins) are fitted on one side of the chiller. Air filter as standard
Storage tank (design pressure 6 bar) complete with P3 pump, filling/drain valve and pressure gauge
Internal hydraulic bypass between the inlet and outlet connections
Electronic level sensor with water conductivity function
High and low refrigerant pressure switches
Refrigerant pressure gauges
Parametric microprocessor control
Protection rating: IP54
Phase monitor against phase loss and phase reversal
Compressor crankcase heater

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
