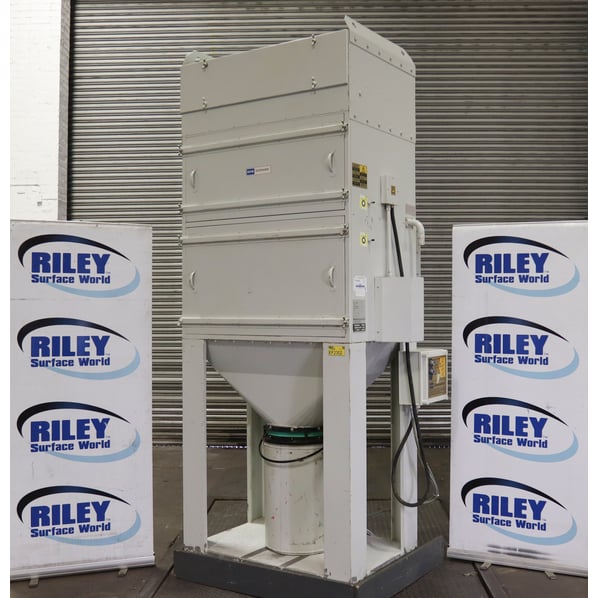

Donaldson Torit (DCE) UMA253K7 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2302
Manufacturer
Donaldson Torit (DCE)
Model
UMA 253 K7
Year of Manufacture
1998
Serial
659987
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
2000 // 3400
Filter Area ft² / m²
250 / 25
Other Info
Explosion Relief Panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
442kg
External Dimensions (WxDxH mm) [?]
1300 x 930 x 2950mm
Delivery
Your delivery options

Description

This pre owned Unimaster UMA253K7 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, dust bag shaker mechanism and shaker motor. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  • Compact, versatile design - Minimises floor space and fits in virtually any plant layout
  • Explosion relief panel
  • Suits a variety of dust collection applications
  • Quiet & efficient operation
  • 3.0kW / 4Hp Self contained fan (enclosed in collector housing to minimize noise)
  • Easy maintenance
  • Large 3ft³ / 85 Litre collection bucket
  • Quick release -  Lever allows for easy removal and maintenance of bin
  • Inlet deflector - Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life
  • Heavy duty flexible metal inner bag coils - Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle
  • Bag release screws - Allow for easy removal of bags
  • Air inlet - Ø250mm

Roof Outlet Grid - 630mm x 630mm

Overall Dimensions - 1300mm x  930mm x 2950mm

Weight - 442kg

pdf icon Print / Download Donaldson Torit (DCE) UMA253K7 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
