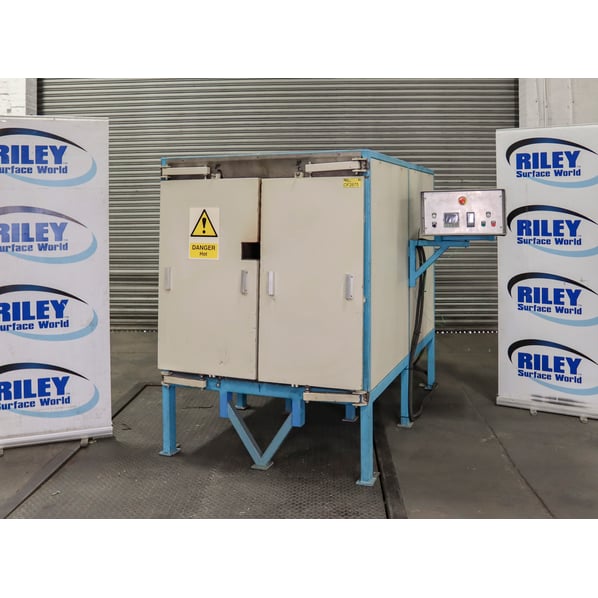

375°C Industrial Box oven

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OF2675
Model
OV1400 Box Oven
Serial
1059
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
1100mm x 1400mm x 1000mm
Max Temp
375°C
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1250mm x 2650mm x 1800mm
Delivery
Your delivery options

Description

This Industrial Forced-Convection Recirculating Box Oven<!--TgQPHd|||[]--> is a prime example of a compact yet heavy-duty thermal processing system. The batch-type oven delivers reliable, precise heat distribution across an operational range of up to 375°C<!--TgQPHd|||[]-->. and is specifically engineered to satisfy a diverse range of industrial component treatments, including coating curing and material testing.

1. Construction

  • Chamber Design:<!--TgQPHd|||[]--> Features a robust, high-capacity stainless steel internal chamber engineered for harsh industrial cycles.<!--TgQPHd|||[]--> <!--TgQPHd|||[]-->
  • Space-Saving Access:<!--TgQPHd|||[]--> The double-door assembly utilises a secure 4-point locking system. The doors pivot at their midpoint to drastically minimise the floor space required when fully opened.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
  • Drive Mechanism:<!--TgQPHd|||[]--> Utilises a rear-mounted, indirect-drive motor and fan arrangement to isolate moving components from high process temperatures.<!--TgQPHd|||[]--> <!--TgQPHd|||[]-->
    • <!--TgQPHd|||[]-->

<!--TgQPHd|||[]-->2. Heat Distribution<!--TgQPHd|||[]--><!--TgQPHd|||[]-->

  • Element Configuration:<!--TgQPHd|||[]--> High-efficiency heating elements are mounted at the rear of the oven and distributed evenly along the sidewalls.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
  • Airflow Pattern:<!--TgQPHd|||[]--> The forced-convection system drives airflow horizontally into the primary heat treatment area, ensuring uniform thermal saturation.<!--TgQPHd|||[]--> <!--TgQPHd|||[]-->
    • <!--TgQPHd|||[]-->

<!--TgQPHd|||[]-->3. Control System

  • Isolated Housing:<!--TgQPHd|||[]--> The control panel is mounted in an independent, external enclosure to protect sensitive electronics from oven heat transfer.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
  • Precision Regulation:<!--TgQPHd|||[]--> Features a high-specification Nanodac controller<!--TgQPHd|||[]--> for advanced data logging and precise PID temperature management.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
  • Fail-Safe Protection:<!--TgQPHd|||[]--> Equipped with a dedicated Eurotherm over-temperature device<!--TgQPHd|||[]--> to prevent thermal runaway and protect valuable payloads.<!--TgQPHd|||[]-->

This Industrial Forced-Convection Recirculating Box Oven<!--TgQPHd|||[]--><!--TgQPHd|||[false,"",false,{"u":0}]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--><!--TgQPHd|||[]--> is a prime example of a compact yet heavy-duty thermal processing system. T his batch-type oven delivers reliable and precise heat distributions across an operational range up to 350°C. It is engineered to satisfy  a diverse range of industrial component treatments, including  coating curing, and material testing.

A well designed, robust oven offering a large stainless steel chamber with a rear mounted, indirect drive motor and fan arrangement.

The heater elements are also mounted at the rear of the oven and distributed evenly along the sides of the oven and horizontally into the heat treatment area.

The oven chamber is accessed by a double door arrangement with a 4 point  locking system. Unusually, the doors are pivoted at midpoint to minimise area taken up when opened.

The control  panel is mounted separately to the oven  in is own housing and consists of a high specification Nanodac controller and Eurotherm over temperature device.

 Operating up to 375°C<!--TgQPHd|||[]-->, this oven is a perfect solution for multiple industries, including;<!--TgQPHd|||[]-->

  • Finishing & Coatings
  • Paint stoving
  • Epoxy/polyester powder curing
  •  Lacquer drying.
  • Plastics curing
  • Rubber softening, and hydrosetting.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
  • Metal annealing, spring stress relieving, and bulk moisture removal.<!--TgQPHd|||[]--><!--TgQPHd|||[]-->
    • <!--TgQPHd|||[]-->

<!--TgQPHd|||[]-->

pdf icon Print / Download 375°C Industrial Box oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
