Process Manufacturing Fume Extraction System

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
Fume Extraction System – Available Immediately Direct From Site
Location
Stroud, Gloucestershire, UK
Buy Now Add to Quote Book Appointment
Stock No
BIO500
Manufacturer
Process Manufacturing
Year of Manufacture
2000
Other Info
Capacity 9.23 m3/sec (19,557 cfm)
Location
Stroud, Gloucestershire, UK
External Dimensions (WxDxH mm) [?]
5m x 3.6m x 2.85m high support
Delivery
Your delivery options

Description

This Process Manufacturing Fume Control System is a complete industrial extraction and fume abatement package designed for plating and surface treatment lines. Comprising of a horizontal fume scrubber & extraction fan, the system provides efficient removal and treatment of process fumes before safe atmospheric discharge.

Fume control plant & equipment extracts fumes via lip hoods at tank flange level, into a plenum chamber and onwards through riser ducts into a header manifold running at high level at the rear of the plant.

Extraction System Includes:

  • Horizontal fume scrubber
  • Extraction fan

Ready For Immediate Shipping

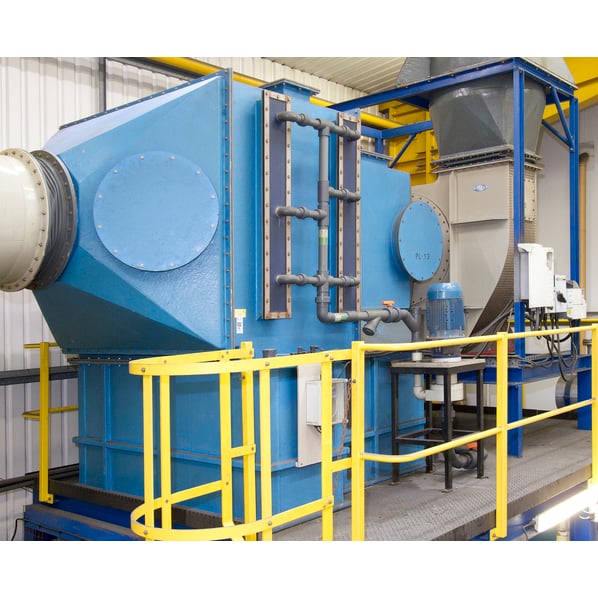

The photos show the previous installation of this fume extraction system at the former owner’s facility. The plant has since been purchased and is now being offered again by Riley’s Surface World, having remained securely strapped and palletised following its previous sale.

As part of the original sale, the extraction system was professionally decommissioned by West Midlands fume & plating specialists, The Plastic Fan Company Limited, ensuring it was safely removed and prepared for future installation.



Horizontal Fume Scrubber

  • Fumes to be treated are extracted from the process tanks and drawn into the horizontal scrubber/unit passing consecutively through the double bank of wet sprays and onward to impingement blade mist eliminators.
  • The scrubber is complete with sump tank, circulation pump and automatic level control.
  • The treated saturated air stream flows through the bank of profiled impingement blade mist eliminators. In this section the entrained liquid droplets removed from the air steam agglomerate on the blade surfaces and gravity flow into the sump tank.
  • On leaving the scrubber unit the treated fumes are ducted to the extraction fan for discharge to the atmosphere via the exhaust stack.

Materials of Construction:

  • Casings, transition boxes, and recirculation tank in uPVC externally reinforced glass fibre/resin laminate using general-purpose resin and chopped strand matt glass fibre.
  • Mist eliminators cassettes, valves, pipework, spray headers and nozzles in uPVC
  • Frame welded constructions, in mild steel box sections finished painted.
  • Mist eliminator blades in polypropylene.
  • Gaskets in uPVC

Extraction Fan

  • Forward curved 1200mm diameter fume exhaust fan, vee belt driven from inverter controlled 18.5 kW motor suitable for 415/3/50 supply complete with base frame, drain socket, anti-vibration mounts, flexible connections and scroll guard.
  • Measured capacity 9.23 m3/sec (19,557 cfm)
  • Fan casing fabricated in Polypropylene
  • Impeller fabricated in Polypropylene.

Reinstallation with The Plastic Fan Company Ltd

This fume extraction system is well known to The Plastic Fan Company Ltd, having been professionally removed from its previous installation by their specialist team. To help the new owner return the system to operation quickly, they have provided a reinstallation quotation of £39,650, which includes:

  • Brand new 9 metre tall stack - Complete with flanges, body band, square to round from fan flange, velocity cone, 4 x LEV test points, roof plate and cravat.
  • Localised drain and overflow pipework.
  • Repair pump inlet pipework.
  • Supply addition pall rings.
  • Fan stand, stainless steel bolts and foam gasket.
  • Complete reinstallation at a site within 75 miles of Birmingham.

Please Note - Installation quote excludes crane, MEWP (Mobile Elevating Work Platform), fork lift, scaffold, electrics, new inverter (if required), new pump (if required), repair to any unknown damage, stack support tower, collection & redelivery and anything other than stated.

pdf icon Print / Download Process Manufacturing Fume Extraction System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
