Machines & equipment for sale

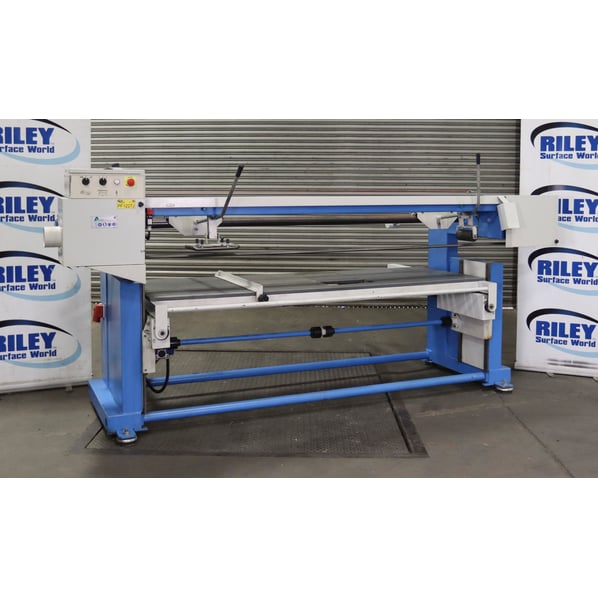

Aceti Long Belt Pad Sander

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
PF1227J
Manufacturer
Aceti
Model
ART.144
Year of Manufacture
2022
Serial
7110
Condition
From a working environment, Excellent Condition
R.P.M.
700/1400 rev's, Belt speed 11/22M/Sec
Hp/Kw
6.0Hp. // 4.5kW
Other Info
Max Component 2400 x 800 x 420mm 150kg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
630
External Dimensions (WxDxH mm) [?]
3700 x 2150 x 1600mm
Delivery
Your delivery options

Description

This Aceti Pad Sander is a versatile industrial finishing machine designed for sanding, satin finishing, grinding and deburring a wide range of components. It is particularly suited to flat and large surfaces such as plates, sheet metal, bars and tubes, as well as fabricated casings, boxes and fairings.

Using a manually operated abrasive belt and pad system, the ART.144 is also ideal for removing weld seams and deburring components following shear, oxyfuel or laser cutting. A motorised support table provides adjustable working height to accommodate different material thicknesses, while compatible with wide range of abrasive belts can be used to achieve different surface finishes (corundum, zirconium, ceramic, diamond, agglomerate, cork, Trizact, Scotch-Brite, etc.).

Operated by the operator, the workpieces are positioned on the support table, which is covered with fireproof material and electrically motorized to adjust the height based on the thickness of the workpieces.

Principle Operation

Featuring a versatile abrasive belt system with a multi-directional contact unit, the belt sander moves up/down and left/right for precise sanding control. The work table also adjusts vertically and forwards/backwards, providing flexible positioning for accurate and consistent surface finishing.

Applications

  • Metallic and none metallic materials
  • Grinding and finishing of sheet, plate, extrusions, and other flat parts
  • Deburring of laser, plasma, and flame cut blanks
  • Deburring of guillotined, sawn, nibbled, and punched parts
  • Finishing of fabrications
  • Grinding and blending of welds
  • Grinding of castings
  • polishing of stainless steel
  • Sanding of wood, paint, plastics, etc
  • Blending of profiled parts
  • De-nibbing and polishing

Technical Details

  • Table dimensions (LxW) - 2400mm x 800mm (Please Note - Table and width does not mean max working dimensions, these also depend upon on the contact roll or pad assembly used.
  • Overall dimensions - 3700mm x 2150mm x 1600mm
  • Vertical table travel  - 500mm (approximately)
  • Component size -  From 1 to 420mm.
  • Approx. weight - 630kg
  • Abrasive belt drive motor - 700 rev/min, 1400 rev/min dual speed
  • Abrasive belt dimensions 150 mm wide x 7000mm
  • Electrical supply - 400V / 50hz / 3 Phase
  • Motorized table lift
  • Single vent extraction hood
  • TAR.144 Roll buffer for corner profiles.

pdf icon Print / Download Aceti Long Belt Pad Sander Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
