Gallito Gas Fired Box Oven

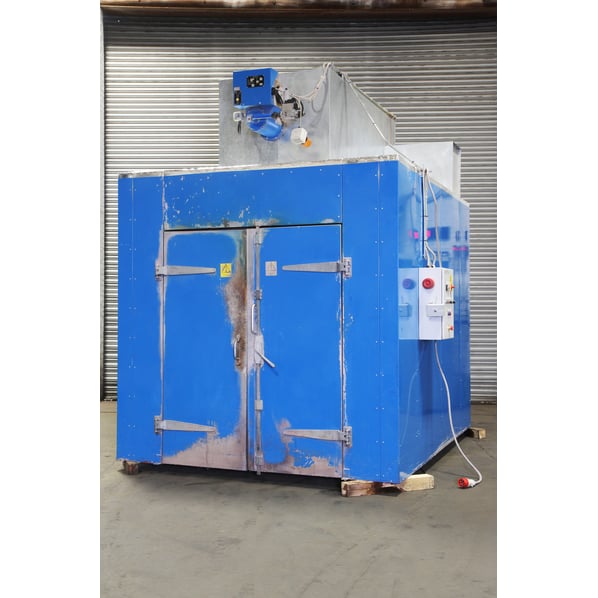

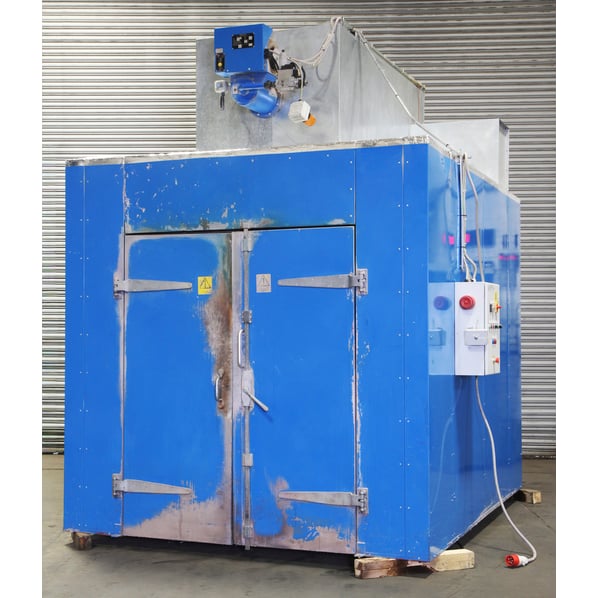

Gallito Large Gas Fired Box Walk through Oven

Internal view with doors open at both ends

Used / Second Hand

Price: Please call on +44 (0) 1922 45 8000
Availability:: Arriving in stock soon, available for purchase now.
Condition: From a working environment, Good Condition, Current Model

Stock No: OF2671
Manufacturer: Gallito
Model: Heavy Duty Box Oven
Year of Manufacture: 2007
Condition: From a working environment, Good Condition, Current Model
Internal Size (WxDxH mm) [?]: 1600 x 3000 x 2000
Max Temp: 250°C
Other Info: Doors both ends
Location: Arriving in our warehouse soon
External Dimensions (WxDxH mm) [?]: 3200 x 2750 x 3500
Delivery

Description

Gallito Box Curing Oven

For Drying, Curing, Baking & Preheating.

Gallito is a leader in paint oven technology. Their Batch Process Oven, with its compact design, provides an economical solution for space limitations. The uni-flow air distribution system circulates heated air on both sides of the oven for a balanced, uniform temperature throughout. This results in a quality finish for your products.

The oven is constructed on from steel sheet with reinforcements to the frame and doors and an aluminium clad internal chamber. The sandwiched sheets are interweaved with aluminium clad fibreglass insulation to retain the heat and offer low running costs.

Features incude:

Omron Dual display temperature controller.
Double doors to each end.
Internal dimensions of 1.6m wide x 3m depth x 2m high
Overall size: 3.2m long x 2.6m wide x 2.5m high (plus 1m for burner box)
3 phase 2.2kw circulation fan.
100kw Comtherm package burner designed to run on Natural Gas.
Auto chamber atmosphere purge system.
Fume bleed system to reduce the volitiles within the chamber whilst processing.
Control includes process batch timer with audiable sounder and auto proces shutdown.
Explosion relief panels mounted in the roof for safe operation.
