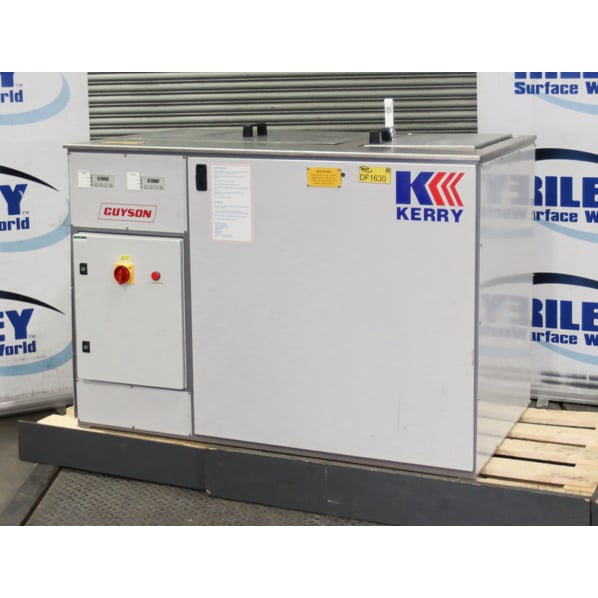

Kerry ( Guyson International ) CRD450 Ultrasonic Cleaning System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
DF1630
Manufacturer
Kerry ( Guyson International )
Model
CRD450
Year of Manufacture
c.2015
Serial
804720
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm) [?]
450 x 325 x 250mm
Process Stages
Ultrasonic wash, rinse and dry
Other Info
36.5 litres effective capacity
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1425 x 1000 x 1025mm
Delivery
Your delivery options

Description

Guyson’s Kerry Pulsatron CRD450 is a 3 stage system with heated ultrasonic cleaning station, immersion rinse with weir to drain, hot air dry and pre draining station. Offering a rapid and highly effective method of precision cleaning components to a very high standard.

Cleaning Process

Stage 1

Ultrasonic transducers bonded to the tank base provide high performance and reliability together with uniform distribution of the ultrasonic energy. The frequency is tuned to the individual tank/transducer combination and then optimised under normal usage conditions with frequency sweep and fully automatic tuning to offer a gentle yet thorough cleaning.

The advantage of ultrasonic cleaning is that it offers a non abrasive scrubbing action upon the parts to be cleaned even within cavities and blind holes.

Stage 2

A simple rinse station to remove any residue of the wash chemistry leaving the part clean and safe to handle.

Stage 3

Recirculating hot air condensor dryer.  The hot air dryer circulates air via a coarse filter and 4.5 kW heating element. Closing the hinged lid initiates the fan and heater operation up to the maximum adjustable temperature of 100°C.

Features

Sonics time may be set in the range 0.1 to 99.9 minutes in 0.1 min increments, or to constant when sonics may be switched on and off manually.

  • Non-operation of sonics if solution temperature is more than 10ºC above set temperature
  • Optional low level protection to prevent heater burn out if solution level drops
  • Solution temperature may be set in the range 20ºC to 80ºC in 1ºC increments
  • Controller automatically selects last-used settings at switch on
  • 4-keypad membrane control panel is easy to use
  • LEDs show the status of power, heater and sonics
  • Mounted operator platform

Technical Data

  • External dimensions -  1425 x 1000 x 1025mm
  • Effective tank dimensions (WxDxH) - 325 x 450 x 250mm
  • Effective capacity - 36.5 litres
  • Electrical supply - 16A per phase max 415V 3 ph + N&E
  • Framework and panels - Fabricated in mild steel finished RAL 7037 mid grey & RAL 7035 light grey
  • Tanks - AISI 316 stainless steel with a bead blast finish
  • Top surround - 304L stainless steel with a bead blast finish
  • Valves and pipework - Stainless steel
  • Generator type - 'Pulsatron' x 2off  (300W)
  • Operating frequency - 38 kHz +/- 10%
  • Heating provided by 4 mat style heating mats at 480W each

pdf icon Print / Download Kerry ( Guyson International ) CRD450 Ultrasonic Cleaning System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
