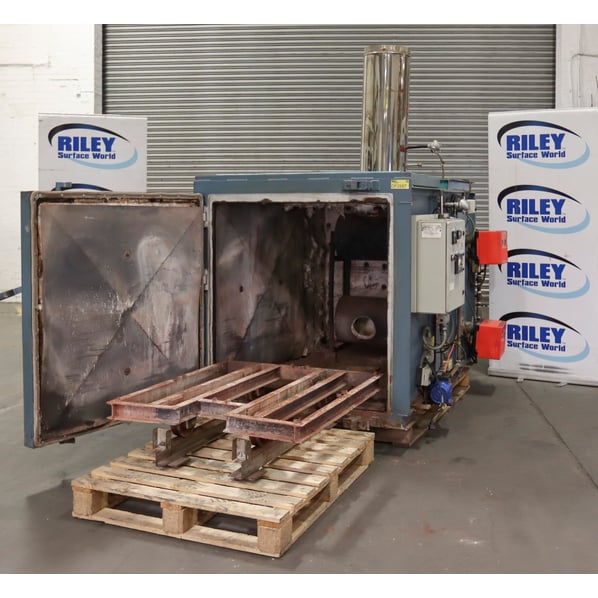

Pollution Control Products 430°C Controlled Pyrolysis Burn Off Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment
Buy Now Add to Quote Contact Us
Stock No
OF2667
Manufacturer
Pollution Control Products
Model
PTR52
Serial
H799
Condition
From a working environment
Internal Size (WxDxH mm) [?]
1060 x 1100 x 1100mm
Max Temp
430ºC in Primary Cleaning Chamber
Other Info
Fuel = Natural Gas 325, 000 BTU
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1600 x 2050 x 1470mm
Delivery
Your delivery options

Description

This is a second hand Pollution Control, pyrolysis gas fired cleaning industrial furnace that is designed to remove cured organic coating such as hydrocarbon coatings from metal parts (jigs, fixtures, hanging trees, hangers or component parts, etc).

Operation

Burn-Off ovens are a specialised type of process equipment specifically designed to remove organic material from metal parts, operating at temperatures of 430°C inside the primary cleaning chamber.

The primary heat input burner fires into a combustion chamber, which contains the flame so that only heat is discharged into the work area containing the parts so no flame actually contacts the parts. Other than the air required for combustion of the input burner fuel, no additional air is added to the oven. Therefore, the oxygen content within the oven is reduced to a level which prevents the material from catching fire.

The heat causes the material to decompose into smoke and pyrolysis gases. These gases are then drawn through the afterburner to be burnt off and completely eliminate any harmful emissions from being discharged out of the exhaust stack. The gases are discharged safely to atmosphere, which consists primarily of water vapour and carbon dioxide, which are invisible, odourless and harmless.

Technical Specifications

  • Manufacturer - Pollution Control Products.
  • Model- PTR52
  • Primary cleaning chamber temperature - 430°C
  • Gas fired afterburner temperature - 850°C
  • Afterburner input 58kW primary burner input 58 kW, Nat Gas 18mbar input 10m³/hr. (TBC)
  • Controls include: digital furnace temperature & set point, digital stack temperature & set point, over temperature water spray system with timer, plus process cycle timer.
  • Internal size - 1060mm x 1100mm x 1100mm
  • External size with chimney - 1600mm x 2050mm x 1400mm

What is Pyrolysis?

Pyrolysis is a thermal cleaning process that uses high temperatures in a controlled, oxygen-free environment to break down and remove organic materials such as paint, plastics, oils, and residues from industrial components. The process provides an effective, environmentally controlled method of cleaning parts without damaging the underlying material.

pdf icon Print / Download Pollution Control Products 430°C Controlled Pyrolysis Burn Off Oven Datasheet

Additional files

Manual for PTR-52 Model

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
