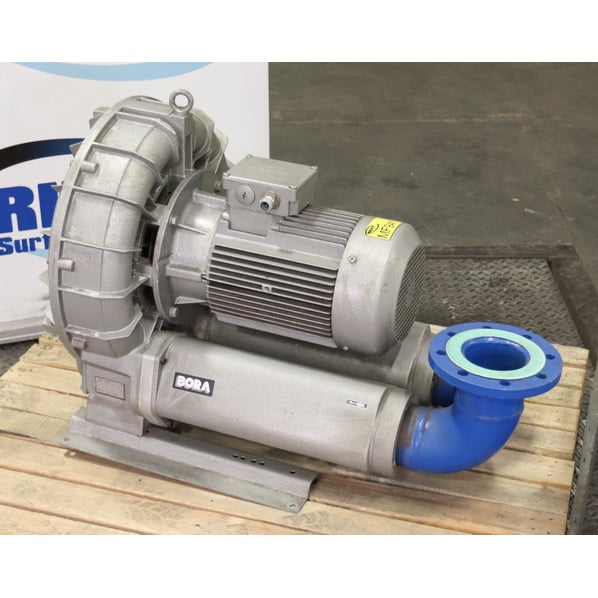

Rietschle Thomas BORA Side Channel Vacuum Pump

Stock No

MF941

Manufacturer

Rietschle Thomas

Model

BORA SAP 710

Year of Manufacture

2004

Serial

1024830154

Condition

Seen working by RSW, Excellent Condition

Approx Duty CFM / M³/Hr

435 / 740m³/Hr

Filter Area ft² / m²

Application Dependent

Other Info

7.5kW : 270mbar

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

119kg

External Dimensions (WxDxH mm) [?]

960 x 550 x 700mm

Delivery

Your delivery options

Description

Side channel vacuum pumps (also called regenerative blowers) are high efficiency, oil free devices that move large volumes of air for industrial tasks like CNC routing and wastewater aeration. Manufactured for durability, these virtually maintenance free pumps use a contact free impeller to compress air without contaminating it.

How They Work

• The Impeller: A single spinning wheel acts like a fan inside a circular casing.
• The Channel: As the wheel spins, it throws air to the outside edges where a "side channel" repeatedly speeds up the air.
• The Result: This continuous spinning creates powerful, smooth suction( vacuum) or pressure.

Top Uses

• CNC Machining: Used to hold wooden or plastic sheets firmly in place on the cutting table.
• Water Treatment: Pumps oxygen into water for fish tanks and sewage treatment plants.
• Packaging: Helps move or hold light materials during factory assembly.

Benefits

• Oil-free: They run completely dry. You do not have to add oil.
• Long life: Because there are no rubbing parts, they can run for over 20,000 hours before needing service.
• Energy saving: Many use premium ATB electric motors to keep power bills low.

Features

• Capacity - 50 Hz - 740m³/h
• Vacuum operation - 270V
• Motor - 3 Phase - 50 Hz 200-255/346-440V
• Motor rating - 7,5kW
• Current drawn - 29,5/17,0A
• Speed - 2850min-1
• Average noise level - 76dB(A)
• Weight - 119kg

Specification

• Non-return valve: 100 (03)
• Vacuum limitation valve: 100
• Bore Ø  = 100mm. (Input and Output)
• Vacuum tight suction filter
• Additional silencer - 100 (06)
• Motor starter: -/200

Print / Download Rietschle Thomas BORA Side Channel Vacuum Pump Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
