Machines & equipment for sale

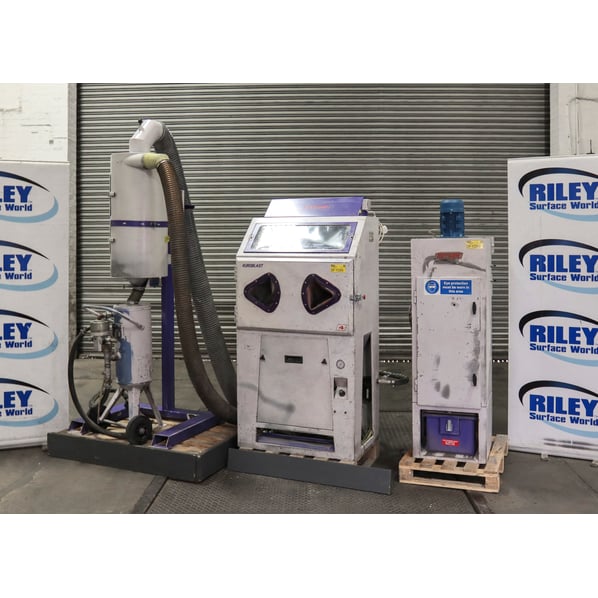

Guyson International Euroblast 4PF Pressure Shot Blast System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment
Buy Now Add to Quote Contact Us
Stock No
SF1099
Manufacturer
Guyson International
Model
Euroblast 4PF
Year of Manufacture
2006
Serial
504774
Condition
From a working environment
Work Envelope (WxDxH mm) [?]
820 x 500 x 420 (TBC)
Work Handling Method
Manual
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm) [?]
930 x 650 x 1670mm (TBC)
Delivery
Your delivery options

Description

The Guyson Euroblast 4PF is a high-performance pressure-fed blast cabinet designed for fast, precision cleaning, stripping and surface preparation. Ideal for grit blasting, soda blasting, plastic media stripping and manual shot peening, it delivers efficient processing without damaging critical components. Featuring upgraded media recovery and HEPA filtration.

The Guyson Euroblast 4PF manual blasting cabinet can offer non destructive cleaning of critical parts without distortion or surface abrasion. It is ideal for component producers, re-conditioners and re-manufacturers seeking to replace slower and more labour intensive methods.

Guyson Euroblast® - perfect for all types of Soda blasting, plastic stripping, grit blasting, sand blasting, and manual shot peening.

Pressure Feed

Designed for speed, giving faster cleaning times(up to four times faster than venturi systems) to meet higher production requirements.

This hybrid version is specifically arranged for use with light polishing - stripping media, with upgraded components to address the complexities of recovering light media and the separation of the waste material.

The unit is equipped with an extended cyclone separation unit with sealed media collection draw at the base.

C400/3 reverse pulse cartridge collector with secondary HEPA filtration, both with Magnehelic pressure differential monitoring gauges, pulse on demand cleaning, sealed waste bucket collection and Increased capacity 27litres SA27 pressure feed pot with fine adjustment media flow regulation.

Typical Applications

  • Industrial maintenance cleaning
  • Paint stripping from aluminium aircraft parts
  • Surface preparation of Additive Manufacturing (AM) prototypes
  • 3D printed parts finishing (smoothing out striation lines on ABS prototypes)
  • Investment removal from castings
  • De carbonising of combustion cylinder heads and components
  • Turbocharger refurbishment
  • Manual shot peening of turbine blades
  • Deburring and descaling metal products
  • Refurbishing pumps and valves
  • Cleaning moulds and dies
  • Cleaning extrusion and injection mould screws
  • Aerospace MRO
  • Cleaning drill rod threads (used in the oil & gas sector).

Specification

Internal chamber width800mm
Internal chamber diameter540mm
Internal chamber height715mm
Overall cabinet height1655mm
Front Door Aperture (WxH)720mm x 410mm
Max floor loading150kg
Cyclone dimensions (WxDxH)870mm x 740mm x 1950mm
Extractor dimensions (WxDxH)

6000mm x 750mm x 2050m

pdf icon Print / Download Guyson International Euroblast 4PF Pressure Shot Blast System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
