Machines & equipment for sale

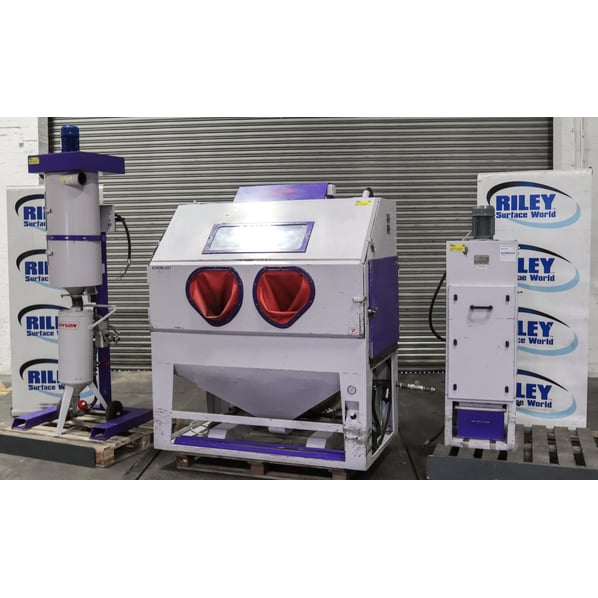

Guyson International Euroblast 7PF SL System Bead Blast Cabinet and Extraction

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SF1097
Manufacturer
Guyson International
Model
Euroblast 7PF SL
Year of Manufacture
2010
Serial
804087
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
1410 x 900 x 900mm
Work Handling Method
Manual with Rotary Table
Other Info
Loading Platform & Trolley+ Rotary Table
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400 + 300 + 150
External Dimensions (WxDxH mm) [?]
1550 x 970 x 1850mm
Delivery
Your delivery options

Description

The Guyson Euro 7 PF pressure feed blast cabinet is a robust, industrial blasting system designed for efficient cleaning and surface finishing across a wide range of components. Manufactured from rigid, welded 16-gauge sheet steel, the cabinet features a durable, tightly sealed construction, with excellent component access and sleeved armholes for comfortable operator use.

Guyson pressure feed blasting equipment provides a faster, more efficient alternative to labour intensive processes such as hand deburring, scraping, wire brushing, chemical cleaning, acid etching, liquid honing, sanding and grinding. Ideal for component manufacturers, reconditioners and remanufacturers.

The system delivers clean, controlled surface treatment within an illuminated cabinet, with continuous dust extraction and abrasive media recycling to support reliable, consistent results. Compatible with a wide selection of blast media and adjustable operating pressures, it can handle everything from delicate components to demanding cleaning and finishing applications.

Benefits of Pressure Feed Cabinets

Designed for high speed blasting, the Guyson 7 delivers cleaning times of up to four times faster than conventional venturi systems, helping you meet demanding production requirements. Its versatile design features front and left-hand swing-open doors, plus an uplifting upper front door, providing excellent access to the full chamber and making component handling easier.

Paired with a correctly matched dust collector, the system maintains clear visibility within the blast chamber and supports a cleaner working environment. Airflow is carefully balanced between the dust collector, cabinet and m-G25+75/16 media reclamator to maximise the recovery and reuse of abrasive media.

The Guyson 7 is particularly suited to treating large surface areas, removing tough coatings and surface deposits, and applications where high productivity is essential.

Bead Blast Cabinet Specification

  • Internal usable dimensions - 1410 x 900 x 900mm
  • Overall height - 1850mm
  • Maximum load - 250kg
  • Loading doors - Front & side
  • Blast pressure regulator - Variable

Also Includes:

C400/3 Dust Collector

Complete with a Guyson C400/3 DCV dust collector that has been designed and developed to match the operational and environmental requirements of the system, cabinet size, air input through the blast nozzle, the application and whether the cabinet usage is intermittent, regular or continuous are all factors in choosing the correct dust collector.

  • Model - C400/3
  • Type of dust extractor - reverse pulse dust extractor
  • Number of filters - 1 Cartridge
  • Dimensions - 460 x 750 x 1630mm
  • Electrical requirements - 1ph/230v

Pressure Pot & Cyclone

The larger capacity pressure vessel, complete with an integrated cyclone, reduces refill times and allows for longer periods of continuous blasting. The cyclone separates lighter, spent abrasive media from heavier, reusable media, which is recirculated through the system to improve blasting efficiency and maintain clear visibility inside the cabinet.

  • Pressure pot model: SA 27
  • Volume: 27 Litres
  • Temperature range: -10°C to 50°C
  • Pressure: 10.5B
  • Cyclone model: 75/15
  • Pressure pot & cyclone dimensions: 860 x 700 x 2310mm

The Pros of Pressure Blast Cabinets

  • High Production: pressure blast cabinets are 3-4 times faster in cleaning a product surface than suction cabinets.
  • Higher performance: as pressure blast cabinets provide media at a greater force, products will be cleaned at a greater degree.
  • More aggressive operation
  • Any type of media can be used.

pdf icon Print / Download Guyson International Euroblast 7PF SL System Bead Blast Cabinet and Extraction Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
