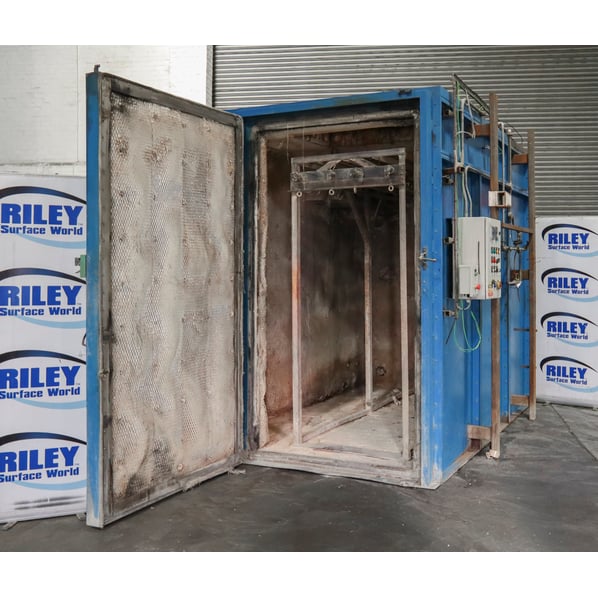

Remal Thorid 400°C Gas Fired Controlled Pyrolysis Burn Off Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OF2666
Manufacturer
Remal Thorid
Model
Pyrolysis Gas Fired Burn Off Oven
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
1300 x 3000 x 2450
Max Temp
Primary - 400°C, Afterburner - 850°C
Other Info
Removable Frame - 1000 x 2850 x 2340mm
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2450 x 3800 x 2840
Delivery
Your delivery options

Description

This Remal Thorid 400°C burn-off oven is an industrial gas-fired furnace designed for high temperature processes such as pyrolysis, the removal of organic residues from metal components, jigs & fixtures. Operating in a low oxygen environment, the oven can break down materials such as paint, powder coatings and oils, helping clean components for reuse and further processing.

Operation

The Remal Thorid oven uses a gas fired heating system to provide controlled temperatures for industrial processing. The burner system incorporates ACE gas burners and an ESA Estro B2 burner management unit, designed to manage the pilot and main gas valves through two-stage burner operation.

Temperature regulation is managed via the Eurotherm 3208 controller, with a separate Eurotherm 2216L over-temperature controller providing an additional level of temperature protection. The control panel also incorporates a Watflow SD and process timer to support controlled operation.

Components are positioned within the oven's steel interior, with the jig space measuring 1000 × 2850 × 2340mm. The systems gas fired heating and temperature control capabilities make it suitable for a range of industrial thermal processing requirements, depending on the application and operating parameters.

Pyrolysis – Suitable for Oxygen Free Heat Treatments

This gas-fired oven can be used for pyrolysis heat treatment, applying controlled high temperatures in a low oxygen environment to break down and remove organic materials such as paint, powder coatings, oils and other residues from metal components. This process supports the cleaning and recovery of parts for reuse, helping prepare them for further processing. With the temperature range of this oven other suitable industrial process may be undertaken.



Also Suitable for Applications

  • Curing paints, varnishes and inks
  • Curing resins, rubbers and composites
  • Processing plastics,
  • De-embrittlement of engineering surface coating and plating finishes .
  • Normalising
  • Age hardening

Features

  • Control panel with process timer
  • Steel interior
  • Jig dimensions (WxDxH) - 1000 x 2850 x 2340mm
  • Gas burner info; ACE (Advanced Combustion Engineering) - 8B M.P 1189359  8305/519 - 8A 1189358  8305/519
  • Estro B2 burner Management box - ESA Estro is a device for two-stage burners (pilot and main gas valves). Remote control via electric and serial signals with powered output when the burner is on.

Control Panel

  • Eurotherm 3208 Controller
  • Eurotherm 2216L Overtemp
  • Watflow SD
  • 415v - 3ph - 50, 60hz

pdf icon Print / Download Remal Thorid 400°C Gas Fired Controlled Pyrolysis Burn Off Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
