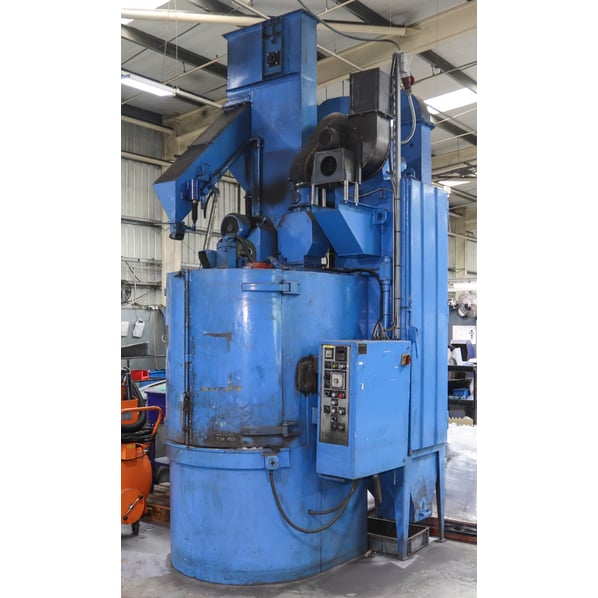

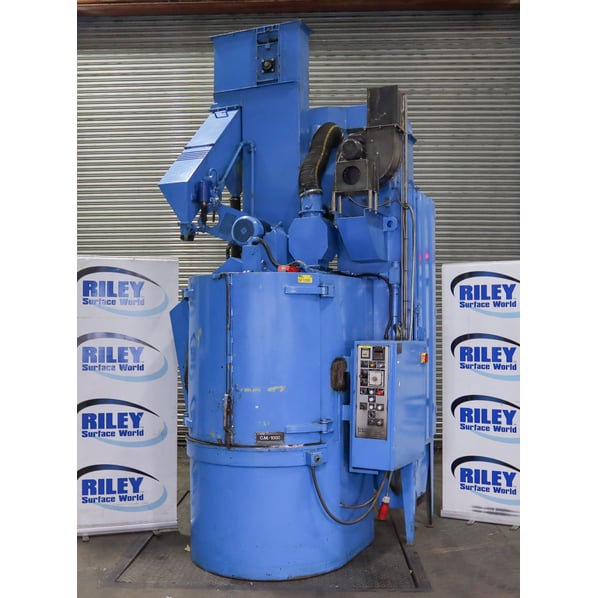

CM Modena CM1000 Airless Ø1000mm Table Shot Blasting Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SF1095
Manufacturer
CM Modena
Model
CM 1000
Year of Manufacture
1985
Serial
2771
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø1000 x 850mm Tall
Work Handling Method
Manual load auto blast
Other Info
Complete with Media
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1350
External Dimensions (WxDxH mm) [?]
1990 x 1940 x 3420
Delivery
Your delivery options

Description

The CM Modena Euroblast CM1000 is a compact, self-contained rotary table shot blasting machine designed to deliver efficient and consistent surface preparation, cleaning and finishing of a wide variety of components. Featuring a 1000mm diameter table with a 900kg load capacity, and up to 850mm in height, integral dust collection, and cyclonic media recovery.

The Modena Euroblast CM1000 is an automated 1 metre diameter rotary table airless blast machine that was formally sold by the Guyson group within the UK.

These machines have a very small footprint compared to the capacity of the work chamber and is fully self-contained with inbuilt dust control and waste separation system meaning it is very easy to install and maintain.

Operation

The parts are loaded to the rotary table and the abrasive media is gravity fed to the centre of a single turbine blast wheel where it is accelerated onto the components sitting on the rotary table.

Consequently every facet of the component exposed to the blast stream is thoroughly blasted as the table revolves through 360°.

Because of their characteristics, the rotary table shotblasting machines can easily be incorporated in diversified machining installations, adapting to the treatment of various parts of different shape and type.

The Modena CM 1000 (rotary table) Shot blasting machine can easily satisfy a variety of blasting needs, providing excellent results in terms of productivity, safety and energy savings, thanks to the quality of materials used, and the safety standards applied.

Typical Uses of the Modena CM1000

Cleaning of Dies for Aluminium Extrusion Industry

The shotblasting process carried out by the shotblasting machine allows removing from aluminium extrusion matrixes the impurities that remain following the cleaning process with caustic soda.

Cleaning of Moulds for Fabrication of Glass Containers

The shotblasting process carried out by the shotblasting machine allows removing from hollow-glass dies the residues of graphite or another release material sprayed on the dies during the production process.

Deflashing, Finishing of High Pressure Die Castings (engine components, ornamental hardware, aircraft and missile components, etc.)

The shotblasting process carried out by the shotblasting machine allows removing residual burrs and making the surface homogeneous both for aesthetic purposes and as preparation for subsequent treatments.

Core Knockout, Cleaning (fettling) of Ferrous & Non-ferrous Sand Castings

The shotblasting process carried out by the shotblasting machine allows removing the layers of casting earth following the casting process. The mass of earth that contains the castings is crushed and separated from the pieces by the impact of the shot and even the slightest slag on the pieces is removed by abrasion.

Features

  • 3kW blast motor
  • 1.5Kw 6.2 rpm driven
  • 1000mm rotary table with a 900kg load capacity and a height capacity of 850mm.
  • Maximum single component size - Ø1000mm x 850 mm High.
  • Comprehensive control panel including ammeter, timer and safety interlocks.
  • Integral bag dust collector.
  • Cyclonic media separation and grading facility.

Dimensions;

  • Overall dimensions - 1990mm x 1940mm x 3420mm
  • Total weight - 1350kg
  • Installed power - 5.7kw 25 Amps

pdf icon Print / Download CM Modena CM1000 Airless Ø1000mm Table Shot Blasting Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
