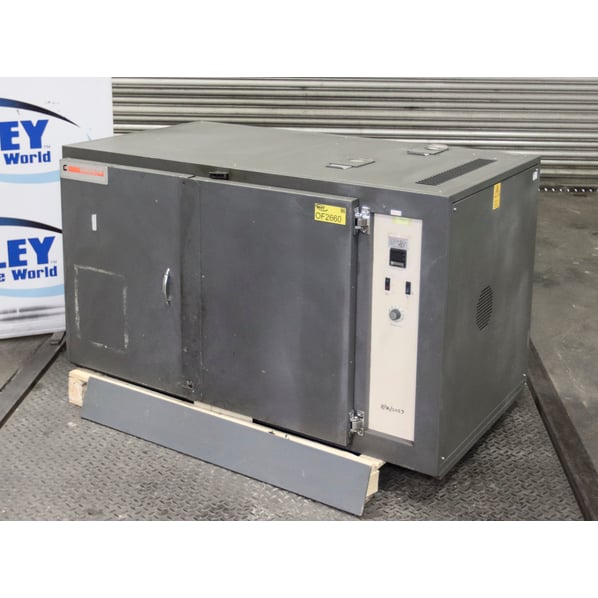

Carbolite 300°C General Purpose Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OF2660
Manufacturer
Carbolite
Model
GP-330B
Year of Manufacture
c. 1996
Serial
8/96/2059
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
960 x 620 x 655mm (400 Litres)
Max Temp
300°C
Other Info
240V, Single Phase, 20 Amp Plug Fitted
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1450 x 850 x 825mm
Delivery
Your delivery options

Description

The Carbolite 300°C General Purpose Oven is a robust 400 litre batch oven designed for reliable and uniform heat treatment applications such as drying, curing and heat treatment.

Features

  • The ovens provide excellent performance and reliability.
  • Chamber capacities of 400 litres, at temperatures up to 300°C (TBC)
  • A long working oven life.
  • The external construction is of mild steel section powder coated.
  • High thermal efficiency is achieved through the use of low thermal mass insulation.
  • Air circulation is critical for efficient and uniform heating and horizontal air flow is achieved via heavy duty impellers.
  • A temperature uniformity of +5°C to within 100mm of the walls and roof and 150mm of the doors and floor is achieved.
  • Fitted with interlocked side hinged doors.

Technical Details

  • Model GP-330B
  • Maximum temperature - 300°C
  • Volume - 400 Litres
  • Total power - 4500 Watts
  • Digital temperature controller
  • Analogue over temperature controller
  • Single phase operation, 240V, 20 Amp Plug Fitted
  • Air circulated
  • 2 internal shelves with 5 shelf provisions
  • 2 roof ports (50mm Ø) with sliding covers

pdf icon Print / Download Carbolite 300°C General Purpose Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
