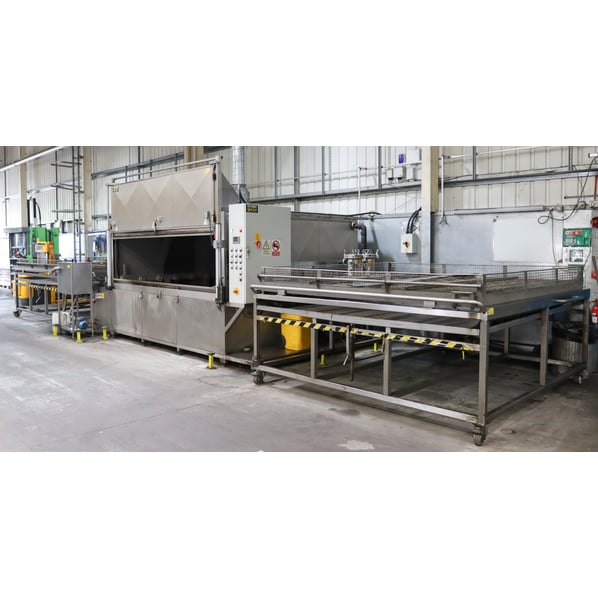

Technowash Techspray F2500 Front Loading Part Washer

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
High Volume Remanufacturing Machinery Clearance
Condition
From a working environment, Seen working by RSW, Excellent Condition
Buy Now Add to Quote Book Appointment
Stock No
DF1624
Manufacturer
Technowash
Model
F2500
Year of Manufacture
10/2018
Serial
51562
Condition
From a working environment, Seen working by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]
Basket Size 2500mm2 (S/S 2 off) H=400mm
Process Stages
Single Stage
Other Info
Pump flow rate: 800-1000L/min (7-8 bar)
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2700
External Dimensions (WxDxH mm) [?]
3300 x 5550 x 3300mm
Delivery
Your delivery options

Description

Designed for modern industrial component cleaning, the Technowash TechSpray F2500 is a fully automatic front loading spray wash system delivering high pressure, low working height jet washing for effective early stage pre-treatment cleaning. Built to handle large batches & oversized components, it features a 2500mm² basket capacity for increased output.

Featuring heated recirculated wash, fine filtration, oil separation and Siemens smart controls, it provides efficient removal of oils, grease and contaminants while maintaining safe, ergonomic operation for large and delicate components alike.

Part of a front loading cleaning range known for being fully automatic, robust, reliable and durable. Designed for modern requirements such as efficient component cleaning whilst remaining ergonomic and safe, eliminating environmental & operating hazards associated with solvent cleaning systems.

Ready For Installation with A D Machine Tool Maintenance

Having been professionally decommissioned by our partners A D Machine Tool Maintenance, this machine has since been transported our warehouse for the connivance of the sale. Therefore offering the opportunity to view at our warehouse.


As the engineers who know how the machine is set up, benefit from the expertise at A D Machine Tool Maintenance to also reinstall & commission this fantastic opportunity now.



Operation

Fitted with fine inline filtration and suitable oil separation, they are able to achieve high standards of cleanliness.

Maximum cleaning efficiency is achieved with a constant speed enabling all the power produced by the wash pump to be used for the washing process, whilst ensuring that delicate and lightweight parts can be washed and degreased without damage or disturbance.

The machine is operated by a Siemens HMI screen incorporating Technowash smart control technology. The machines parameters are changeable within this interface function.

Features

  • Full double skin 304L grade stainless steel construction with thermal acoustic insulation throughout (35mm thickness).
  • Stainless steel mesh component basket with minimal product height clearance.
  • Maximum basket weight capacity - 100kg component.
  • External load/drip tray to roll the component basket onto, for loading and unloading purposes.
  • Three wheeled trolleys.
  • Pneumatic power driven front mounted vertical access door.
  • Machine mounted control panel, complete with Siemens LOGO micro-processor and all relevant control and indicator/warning lights including adjustable fluid temperature control and process cycle timer.
  • Electric powered fluid heating fitted to the wash tank with digital type, fluid temperature control.
  • Multiple water powered stainless steel rotary spray bar assemblies with spray jets positioned above and below the component basket to spray the heated wash fluid solution onto the component parts.
  • Side mounted fluid saddle tanks with hinged and lockable tank lids.
  • Chemical and corrosion resistant pressed stainless steel high flow wash and rinse pumps.
  • Integral coarse and medium level of fluid particle filtration.
  • Water vapor extraction, bifurcated fan/ motor assembly.
  • Automatic mains water refill solenoids fitted to the wash tank.
  • Fine inline fluid particle filtration with pressure differential gauges.
  • SICK digital high / low fluid level warning and cut out control.
  • External oil/water separator  Model OS1.
  • Tank capacity - 1200 Litres.
  • Pump flow rate - 800 to 1000L/min (pressure 7-8 Bar).
  • Heating power - 48kW.

pdf icon Print / Download Technowash Techspray F2500 Front Loading Part Washer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
