Machines & equipment for sale

EMC-Italy Easy Gloss M1220 Reciprocating Flatbed Polisher

Stock No
PF1222
Manufacturer
EMC-Italy
Model
Easygloss
Year of Manufacture
2020
Serial
111.11.02
Condition
From a working environment, Good Condition, Current Model
Hp/Kw
9.0kW
Other Info
Working width: 1220mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2110
External Dimensions (WxDxH mm) [?]
3900 x 2200 x 1850
Delivery
Your delivery options

Description

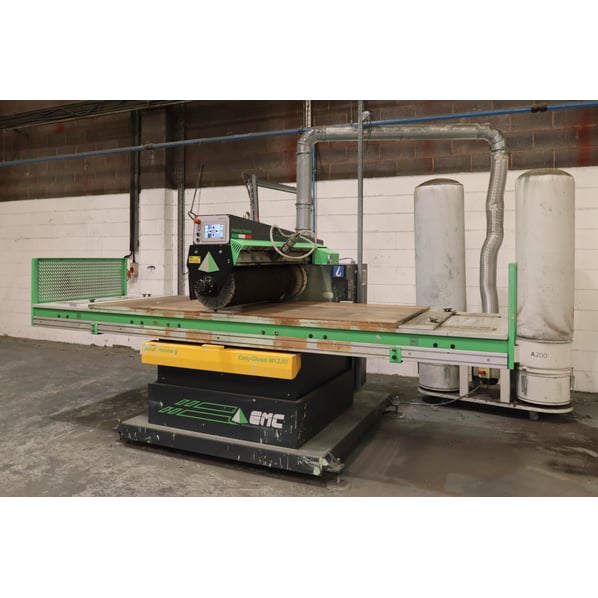

EMC Easy Gloss M1220 Reciprocating Flatbed Polisher

Preview information: Technical specification to be confirmed by Riley Surface World engineers.

High-quality polishing of metal parts via a reciprocating, oscillating brush. Capable of processing flat and curved surfaces with a working width of 1220mm and a working height of 0-295mm.

Working width – 1220 mm.
Working height – 0-295 mm.
Maximum workpiece dimensions – 2660 x 1220 mm.
Working unit – oscillating reciprocating brush 30 mm (15 mm + 15 mm).

Polishing tech

  • Automatic thickness adjustable.
  • Adjustable feed speed via an electric inverter.
  • Integrated vacuum device for part fixation and/or mechanical clamps.

Electric control panel

  • Process management via PLC.
  • Automatic curved workpiece processing without geometry programming.
  • Automatic working pressure control.
  • Electronic touch screen display

Flat part clamping system

EMC Easy Gloss M1250 is equipped with a mechanical clamping system for reliable polishing of flat metal workpieces.

Curved part clamping system

Special clamping system enables polishing of complex metal parts and non-standard surfaces.

Dust Extractor

  • A200 Dust Extractor.
  • Two Filter bags, Ø480 x 1500mm each.
  • 1765CFM // 3000M³/Hr.
  • 1.5kW motor.
  • 80Kg

UK Agent Support - Finaids

Finishing Aids and Tools Ltd is the UK agent for EMC machinery and is available to support this machine with commissioning, service and consumables. As part of Riley Surface World's network of friends and partners in the industry Fin Aids are well placed to support buyers in the UK and through a wider European network to make the most of this opportunity.

FINAIDS has specialised in a wide range of abrasives products and portable machinery covering numerous applications and industries for over 60 years. FINAIDS’ production facility, located in Bury, Lancashire produces belts, sheets, discs and rolls in standard coated abrasives, surface conditioning materials (3M Scotchbrite™) and ‘exotic’ ceramic products using state-of-the-art machinery, offering prompt service and excellent value for money.

Contact their team via their website

pdf icon Print / Download EMC-Italy Easy Gloss M1220 Reciprocating Flatbed Polisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
