EMC-Italy Explorer M1350 RRB Flatbed Belt Linisher

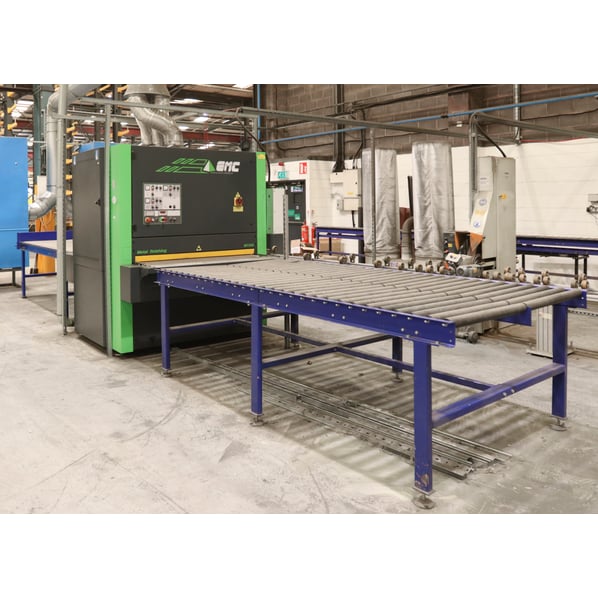

Side View Showing Loading and Unloading Roller Track

Internal View of Machine Showing The Twin Belts and Brush Mechanisms

Internal View Showing the Three Drive Motors

Internal View Showing the Three Main Drive Motors

Close Up of The Three Main Drive Motors and Belt Drives

Stock No: PF1221
Manufacturer: EMC-Italy
Model: Explorer M1350 RRB
Year of Manufacture: 2020
Serial: 107.38.19
Condition: From a working environment, Good Condition, Current Model
Hp/Kw: 15.0kW
Other Info: Working width 1350mm
Location: Our Central Warehouse, Aldridge, UK
Weight (kgs): 2170
External Dimensions (WxDxH mm) [?]: 1900 x 2500 x 2400
Delivery

Description

EMC Explorer M1350 RRB Flatbed Belt Linisher

Preview information: Technical specification to be confirmed by Riley Surface World engineers

With a working width of 1350mm this flatbed Belt Linisher can provide multiple grinding and deburring solutions due to the 3-stage Belt, Belt, Brush configuration. Use as a stand alone process in in line operation.

The working width of 1350 mm and the fixed table of 900 mm allow it to work in line with other machines or stand alone. This machine can be used for both dry and wet processes. Suitable for metal, composite materials and more.

Table height: 900 mm
Working width: 1350 mm
Working thickness min/max: 0,5 – 170/200 mm
Inverter for feed speed control
Vacuum device
Touch screen: 15"
Electronic GRIT SET of abrasive belts

Ideal for the following Processes;

Deburring
Edge Rounding
Deslagging
Finishing and Grinding
Calamine removal

UK Agent Support - Finaids

Finishing Aids and Tools Ltd is the UK agent for EMC machinery and is available to support this machine with commissioning, service and consumables. As part of Riley Surface World's network of friends and partners in the industry Fin Aids are well placed to support buyers in the UK and through a wider European network to make the most of this opportunity.

FINAIDS has specialised in a wide range of abrasives products and portable machinery covering numerous applications and industries for over 60 years. FINAIDS’ production facility, located in Bury, Lancashire produces belts, sheets, discs and rolls in standard coated abrasives, surface conditioning materials (3M Scotchbrite™) and ‘exotic’ ceramic products using state-of-the-art machinery, offering prompt service and excellent value for money.

Contact their team via their website

Print / Download EMC-Italy Explorer M1350 RRB Flatbed Belt Linisher Datasheet
