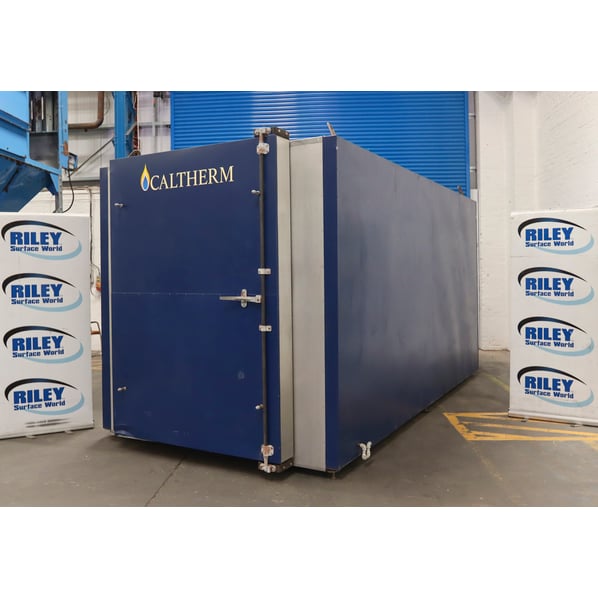

Caltherm 250°C Torrefaction Oven With Trolleys and Water Sprinkler System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
OF2658
Manufacturer
Caltherm
Model
Torrefaction Oven
Year of Manufacture
10/2008
Serial
J6794
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
1000 x 3200 x 1900mm (6.1m3)
Max Temp
250°C
Other Info
3Meter Trolleys & Water Sprinkler System
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2352 x 4927 x 2518mm
Delivery
Your delivery options

Description

A specialist industrial oven designed for torrefaction, this Caltherm 250°C torrefaction oven also suitable for general curing, drying, and heat treatment applications. It features a stainless steel chamber, Eurotherm programmable controls, humidity regulation, water sprinkler system and trolley loading for controlled, efficient processing.

This special build Caltherm oven was designed and built for the Torrefaction of biomass products but can be used as a standard oven for heating and curing and drying of any product just as a standard 250°C oven.

Torrefaction - What is it?

Torrefaction of biomass is a mild thermochemical pre-treatment that heats biomass (such as wood chips or agricultural residue) in an oxygen-depleted environment to temperatures between 200°C and 300°C. When biomass is heated at such temperatures, the moisture evaporates and various low-calorific components (volatiles) contained in the biomass are driven out. During this process mainly the hemi-cellulose in the biomass decomposes. This transforms the biomass from a fibrous low quality fuel into a product with excellent fuel characteristics.

Whilst similar to Pyrolysis, torrefaction is conducted at lower temperatures and has different objectives. Pyrolysis aims to maximise liquid product yields, while torrefaction focuses on maximising solid biochar yield with improved fuel properties.

Specification

  • Eurotherm 3504 Programmable controller
  • Eurotherm 3216 overtemperature policeman
  • Eurotherm 3208 Humidity controller
  • HygroMatik Water sprinkler system control and inbuilt water sprinkler system
  • Stainless steel chamber
  • Rear wall air circulation fan
  • HMT100, Vaisala humidity and temperature sensor
  • Internal dimensions - 1000mm x 3200mm x 1900mm (6.1m³)
  • External dimensions - 2352mm x 4927mm x 2518mm
  • Internal E stop chord
  • Extraction duct

pdf icon Print / Download Caltherm 250°C Torrefaction Oven With Trolleys and Water Sprinkler System Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
