Machines & equipment for sale

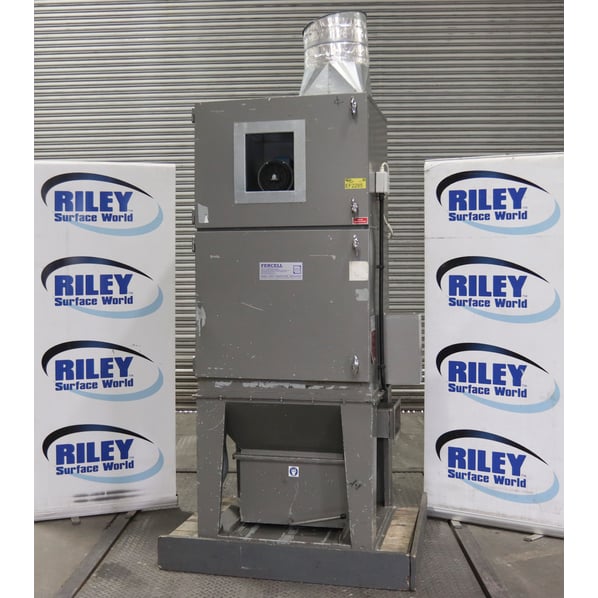

Filtex FX125 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2285
Manufacturer
Filtex
Model
FX125 Type H
Year of Manufacture
2001
Serial
9537
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1000cfm // 1700m3/Hr
Filter Area ft² / m²
1252ft / 11.6M2
Other Info
Explosion Relief Panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400
External Dimensions (WxDxH mm) [?]
1205 x 820 x 2150 (TBC)
Delivery
Your delivery options

Description

This second hand FX125H 2.2kW // 3 Hp self contained centrifugal extraction fan is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications. ATEX rated explosion relief panel.

Features

  • A completely self-contained dust collector, with integral fan, acoustic attenuator and automatic controller the FX uses high efficiency envelope filter elements to cope with fine and light dusts.
  • The FX is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.
  • The FX benefits from standard zintec steel for even more demanding environments.
  • The FX filter performance enables the recirculation (in some circumstances) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.
  • The above design duties are based on an 8:1 cloth to air ratio. A variety of filter medias are available.

Technical Specifications:

  • FX 125.
  • ATEX rated explosion relief panel.
  • Capacity: 1,000 cfm @ 7.0” swg 1,700 M³/Hr.
  • Fan size: 2.2kW // 3 Hp.
  • Filter area: 125ft² // 11.6M².
  • Bin capacity: 2.5ft³ // 75 litres.
  • Noise level: 76dB(A).
  • Overall dimensions: 1205mm x 820mm x 2150mm (TBC).
  • Weight: 400kg.

The above design duties are based on an 8:1 cloth to air ratio.

pdf icon Print / Download Filtex FX125 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
