Machines & equipment for sale

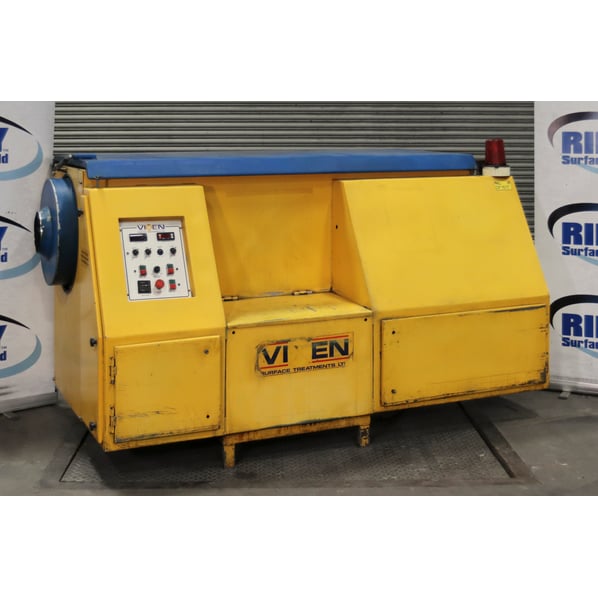

Vixen Tristar Compact TW500 Continuous Component Washer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DF1617
Manufacturer
Vixen
Model
TW 500
Year of Manufacture
1997
Serial
F7-121676
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø500mm drum with Ø2mm holes
Process Stages
2
Other Info
Continuous washing facility
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450kg
External Dimensions (WxDxH mm) [?]
1800 x 1200 x 1100
Delivery
Your delivery options

Description

A compact continuous washer for gentle, high volume cleaning of delicate components such as precision machined components from CNC operations. Using an Archimedes screw design, the Tristar TW500 conveys parts through a stainless‑steel drum across immersion wash, spray wash, and hot‑air drying stages.

Featuring a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall, this means that as the drum rotates, the turning of the screw moves the parts forwards. The parts go through three stages within the drum, immersion wash, spray wash and hot air dry.

This Tristar machine has been developed to provide a continuous throughput of parts that need to be degreased and dried in large quantities on a continuous basis from such machines as CNC lathes and auto's.

Feature Include:

  • Stainless steel Ø500mm drum with Ø190mm inlet and Ø2mm perforation holes
  • Fitted variable drive speed control
  • Electrically heated solution
  • Adjustable drying heater temperature control
  • Adjustable wash heater temperature control
  • Coarse pre-filter to catch debris
  • Internal oil skimmer for tramp oil removal
  • Inbuilt steam extraction facility
  • Auto fill
  • Tank drain tap
  • 5 pin plug fitted

pdf icon Print / Download Vixen Tristar Compact TW500 Continuous Component Washer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
