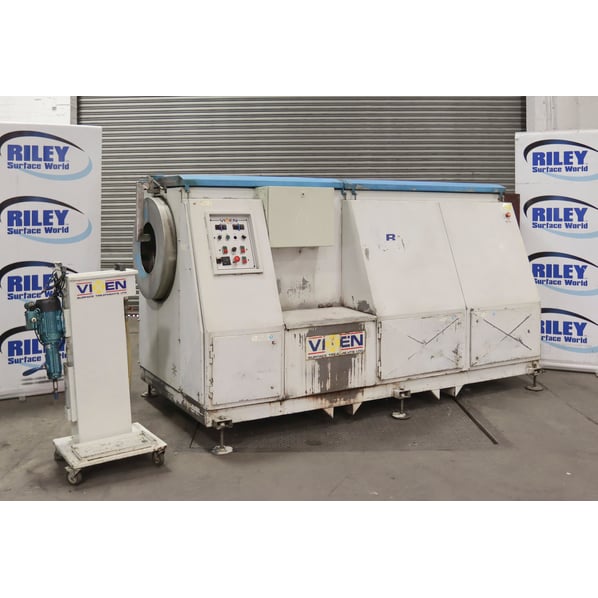

Vixen Surface Treatments Tristar TS700 Archimedes Screw, Continuous Wash and Drying Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DF1616
Manufacturer
Vixen Surface Treatments
Model
TS 700
Year of Manufacture
2000
Serial
1200
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø700mm Drum with Ø2mm Holes 250mm Pitch
Process Stages
Immersion Wash, Spray Rinse / Wash & Dry
Other Info
External Coalescing Filter
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
3350 x 1800 x 1700mm
Delivery
Your delivery options

Description

The Tristar rotary drum machine has been designed to provide a continuous throughput of smaller parts that need to be degreased and dried in large quantities.

  • Typical applications would be for the washing and drying of nuts, bolts, screws, fasteners or similar small parts.
  • The Tristar TS700 houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. This means that as the drum rotates, the turning of the screw gently moves the parts forwards through the stages of the machine.
  • These machines have been developed to provide a continuous throughput of parts that need to be degreased, and dried in large quantities. This  3 stage model includes immersion wash, spray wash & hot air dry.

Features include:

  • Stainless steel drum Ø700 mm.
  • Fitted with variable drive speed control.
  • Electrically heated.
  • Coalescing Oil skimming from a separate free standing filter.
  • Coarse and fine fluid filtration.
  • Digital temperature control.
  • Inlet Ø 350mm.
  • Discharge height - 630mm (Adjustable).
  • External Coalescing Filter.

pdf icon Print / Download Vixen Surface Treatments Tristar TS700 Archimedes Screw, Continuous Wash and Drying Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
