Machines & equipment for sale

AEW Batch Processing Oven With Vertical Uprising Door

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
Arriving in stock soon, available for purchase now.
Condition
From a working environment, Good Condition
Contact Us
Stock No
OF2654
Manufacturer
AEW
Model
1800 Litre Box Oven
Serial
63910
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
1440 x 1300 x 960mm
Max Temp
300°C (Can Reach 500°C)
Other Info
Small Footprint
Location
Arriving in our warehouse soon
Weight (kgs)
1206
External Dimensions (WxDxH mm) [?]
1760 x 1860 x 3240mm
Delivery
Your delivery options

Description

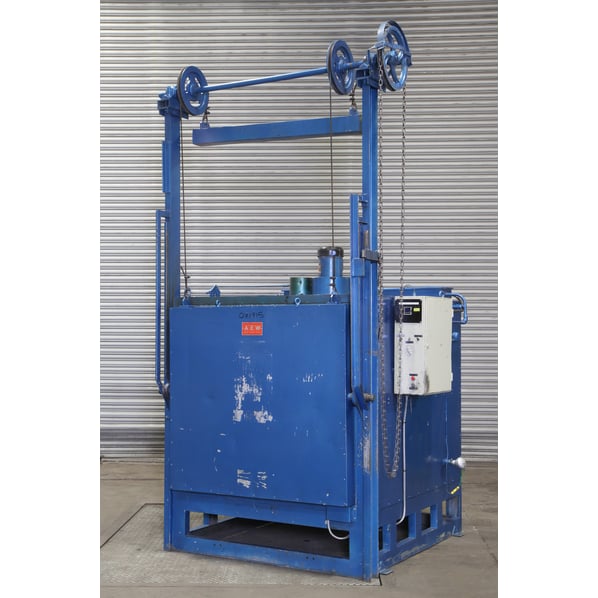

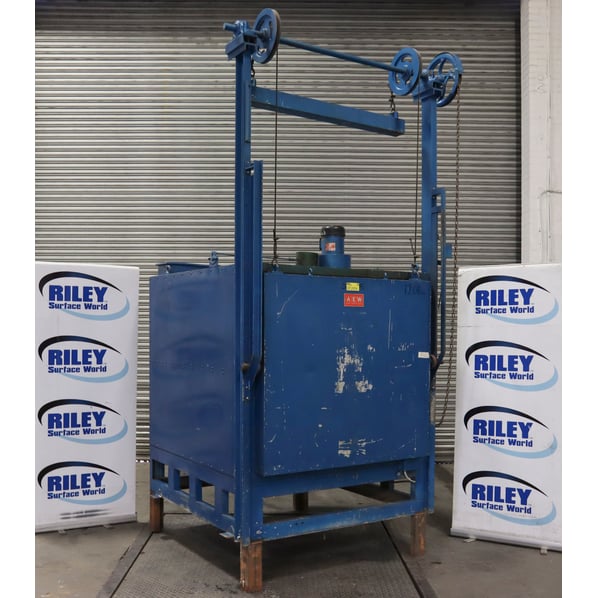

AEW Batch Processing Oven With vertical uprising door

  • The AEW Batch Processing Oven With vertical uprising door was designed as a space saving medium sized batch oven for general purpose industrial heat treatment purposes.
  • This AEW air circulated heavy duty industrial electric batch oven is suitable for a wide range of industrial processes.
  • The vertically operated door provides a space saving footprint, not requiring any forward space to gain access to the chamber. The door is easily operated with the attached lifting chain and counterbalanced weight allowing one handed operation. The door itself runs in guide rails with an end closure ensuring a tight seal on the process chamber.
  • Complete with control panel including Eurotherm dual display temperature controller with set point, indicator lights for heaters and fan stop/start buttons,

Features include:

  • Heavy duty carbon steel construction.
  • Counterbalanced vertical uprising door.
  • Generous process chamber.
  • Stand mounted for ease of loading.
  • Vertical airflow pattern.
  • Exhaust spigots with adjustable damper.
  • 24kW of installed heater load.
  • Modern Eurotherm dual display temperature controller.

pdf icon Print / Download AEW Batch Processing Oven With Vertical Uprising Door Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
