Machines & equipment for sale

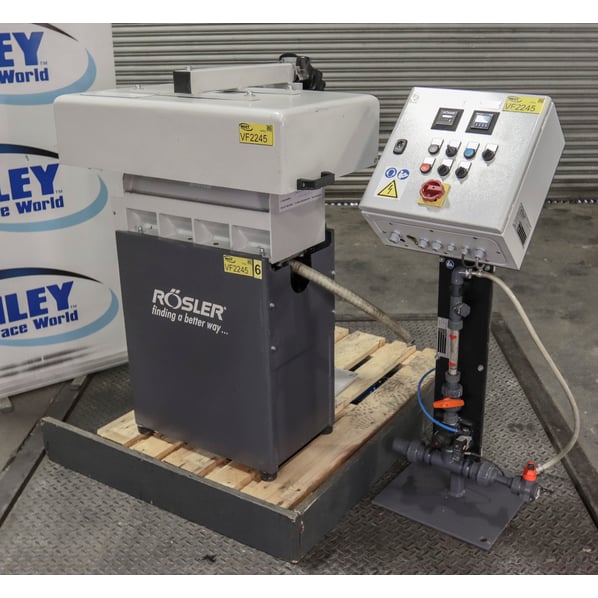

Rosler Trough Vibrator R180/530

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Current Model
Contact Us
Stock No
VF2245
Manufacturer
Rosler
Model
R 180/530 Vibratory Finishing Machine
Year of Manufacture
2016
Serial
72989
Condition
Seen working by RSW, Good Condition, Current Model
Capacity
Total 10 Litres.
Type
Course Finish, Fine Finish or Polish
Other Info
400V 50 Hz
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1200
External Dimensions (WxDxH mm) [?]
650 x 360 x 600mm
Delivery
Your delivery options

Description

Rosler R180/530 Vibratory Finishing machine, originally used for medical implant finishing, but suitable for many types of small part finishing to a high standard. These machines can be used for highly polished finished components suitable for any industry including the medical industry.

This direct drive foot mounted system generates powerful vibratory force at relatively low energy costs and allows for a compact cell design. Finish a wide variety of small workpieces produced in small batches or longer units up to 500mm in length.

  • Trough Linings inspected by Riley Engineer - Found to be in excellent condition.
  • Acoustic covers.

Principles of Vibratory Finishing

  • Vibratory surface finishing takes place in a work bowl or trough placed on coil springs. The vibratory energy is induced by a special vibratory motor that is mounted on the bowl or trough. The vibration creates the typical relative movement of media against parts.
  • Vibratory finishing can be used for all metals, many plastics, ceramics, rubber, wood, stone and glass and can help to achieve a wide range of objectives.
  • The continuous feeding of water and compound, such as soap, supports the finishing process.
  • Excellent results can be obtained for highly delicate and small components as well as for larger mass made and robust components.

Typical Applications Include:

  • General deburring.
  • Heavy duty radiusing (edge breaking).
  • Surface smoothing.
  • Polishing.
  • De-greasing.
  • Surface cleaning.
  • Pickling, descaling, de-rusting.

Dimensions etc.

  • Work Bowl with lining (Internal dimensions): 180 x 230 x 530 mm (w x d x l)
  • External dimensions: 650 x 360 x 600mm (w x l x h)
  • Volume: 10 Litres
  • Drive power: 0.65 kW
  • Drive speed: 3,000 RPM

pdf icon Print / Download Rosler Trough Vibrator R180/530 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
