Machines & equipment for sale

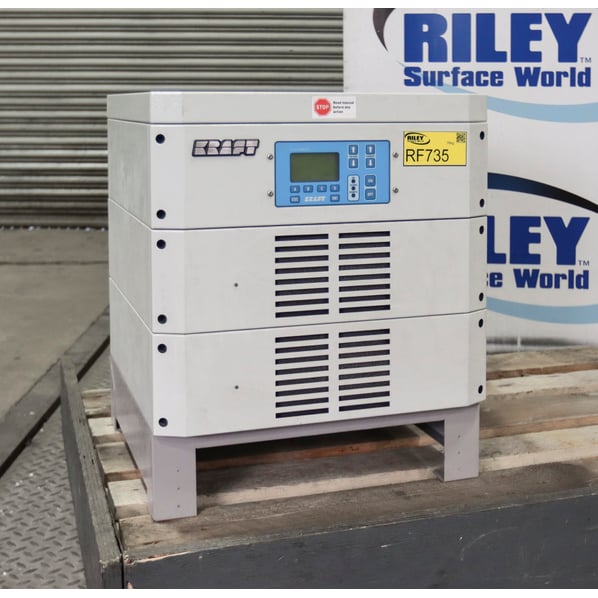

Kraft Air Cooled, Modular Switch Mode Rectifier

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
RF735
Manufacturer
Kraft
Model
FLEX KRAFT 2M
Serial
1 1271713
Condition
From a working environment, Good Condition, Current Model
Voltage
380-480 input : 15Vdc Output
Amps
1000Adc 15kW
Other Info
Fan Air Cooled : Continuous Operation
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
76
External Dimensions (WxDxH mm) [?]
500 x 600 x 585
Delivery
Your delivery options

Description

The FlexKraft 2M Air-cooled system is a modular, air-cooled rectifier designed for demanding industrial applications including ballast water management systems. Key features include:

  • Robust air-cooled architecture requiring no external cooling systems,
  • Modular design for easy front-access service and quick power module replacement,
  • High operational availability with built-in redundancy,
  • Compact, single-side serviceable design for simplified installation and maintenance,
  • Tested and type approved by DNV-GL and KR,
  • Designed for reliable performance in harsh environments with ambient temperatures up to 55°C,
  • Especially suited for applications where simplicity, flexibility, and compact integration are important.

This air-cooled system is a dependable choice for industrial users needing stable DC power with straightforward service routines.

  • Flexibility :  Besides regular voltage control and current control, FlexKraft also offers power control that allows the use of a wide voltage and current output range.
  • Upgradable Output Power : The modular design allows for future increase of the output power.
  • Serviceable :  Easy access for module repair or replacement.
  • Space-saving :  The small footprint allows for easy installation and the modular design for exceptional layout flexibility - especially with two or more power supplies assembled into one tower.
  • High Power Factor :  Low reactive power consumption throughout the range reduces installation and electrical cost.
  • Ripple : Low ripple at ALL output currents.
  • Modular Design : Any combination of power modules up to 60 VDC or 24 000A can be supplied.
  • Individually Controlled Dual Outputs :  Flex Kraft is also available with dual outputs up to 15 VDC 2 x 3000A. The two outputs are controlled 0-100% totally individually and independently.
  • Protection : Over-current : Over-voltage  : Overtemperature : Short circuit  : Open circuit : Module failure

CONTROL PARAMETERS

  • Setting:
  • Outputs:
  • Set current
  • Actual current
  • Set voltage
  • Actual voltage
  • On / Off
  • On signal
  • Start / Stop
  • Run signal
  • Stand by / Run
  • Actual Amp hours
  • Amp hours
  • Actual run time
  • Run time Alarm (general alarm)
  • Clear counters
  • Alarm status (cause of alarm)
  • End of process

https://kraftpowercon.com/product/flexkraft-plating-rectifier

https://kraftpowercon.com/wp-content/uploads/2023/03/S107.050_FKA_D_EN_Rev.E.pdf

 Details below from the OEM.

The FlexKraft 2 M unit is a modular switch-mode rectifier designed for electro-chemical processes, especially electroplating. Here are some key technical details:

  • Modular design with power modules each up to 8 kW (e.g., 12 V, 600 A per module).
  • Ability to combine up to 10 modules in a tower.
  • Up to 10 towers can be combined, reaching 60 kA at 12 V.
  • Output voltage range up to 120 V DC.
  • Flexible current settings depending on the number of modules (for example, 600 A per module at 12 V).
  • Operates continuously at maximum output in ambient temperatures up to 50°C.
  • Control system supports both constant voltage (CV) and constant current (CC) modes with independent voltage and current setting.
  • Dual output option available, allowing one rectifier to function as two with maximum current halved.
  • Low ripple and high accuracy in power output.
  • Designed for demanding electroplating environments with features for easy service and redundancy.



pdf icon Print / Download Kraft Air Cooled, Modular Switch Mode Rectifier Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
