Machines & equipment for sale

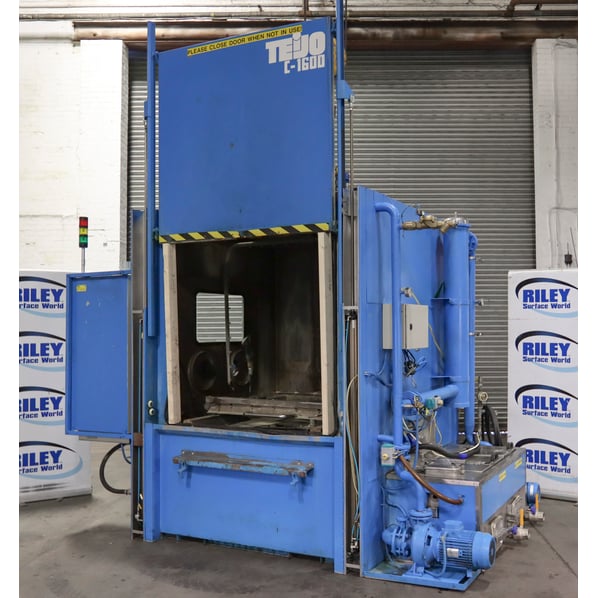

Teijo C-1600 Front Loading Basket Washer

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Good Condition
Contact Us
Stock No
DF1615J
Manufacturer
Teijo
Model
C-1600-23HS-PD1
Year of Manufacture
2001
Serial
21157
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
Ø1400mm x 1200mm Height
Process Stages
3 Stage: Wash, Tapwater Rinse, Hot Rinse
Other Info
2 X 12 kW Heating Elements per Tank
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

 The Teijo heated cleaning machine provides an excellent cleaning solution to meet the cleaning needs for larger components up to 1000kg in weight and 1400mm in diameter. Spray wash arms rotate around the stationary components to facilitate an all round clean.

Operation

The cleaning operation takes place inside the enclosed machine to prevent the escape of heat, solution and contaminates and the process is fully controllable via timers, heat controllers and mechanical adjustment to set the machine to its optimum cleaning cycle to meet the customer requirements.

The cleaning solution is heated and has a thermostatic controller to regulate the temperature of the cleaning solution. The recommended temperature range is between 60°C and 80°C.

When the cleaning cycle is completed the door will open a small amount and the steam extractor will operate, this sucks in air through the ajar door and out through the extraction vent so as to protect the operator from the steam and fumes created during the wash cycle. After a set time (adjustable) the door fully opens and the cycle is then complete.

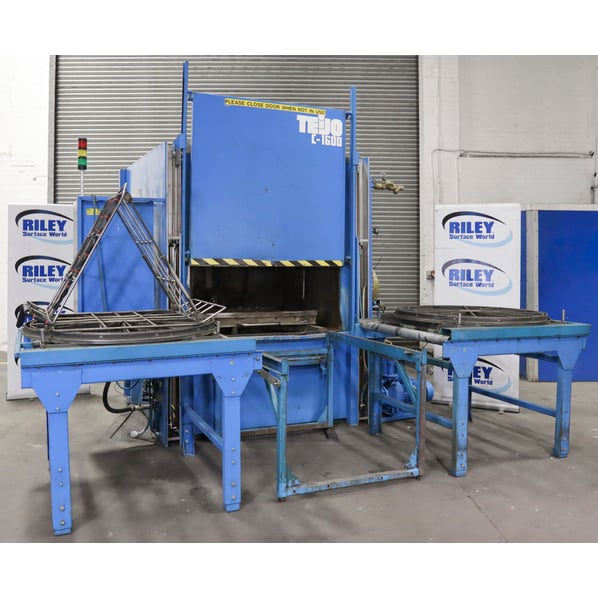

There are two loading / unloading bunded platform which sit to the front of the machine and are sited so that work can be rolled on or off each of these platforms onto the centre platform for loading into the machine. (See images)

Features

  • Powered Shuttle Loading Table up to 1000kg
  • Automatic cleaning cycle
  • Fully controllable heating, timing and spray pressure control
  • Automatic water fill
  • Safety level cut off device if level is too high or too low
  • Steam extraction
  • In-built filter system
  • Upper spray pipe is controlled via a geared motor drive
  • Pneumatically operated lifting door
  • There is also a suction gun to remove any cleaning solution that may 'pool' in the components after washing
  • 415 Volt 3 phase supply
  • 49kW, fuses 3 x 100A
  • Heated cleaning 60°C to 80°C is recommended
  • 7 day timer
  • Manual grid rotation
  • Max. Load - 1000kg
  • Max. Load Size (Diameter x Height) - Ø1400mm x 1200mm

pdf icon Print / Download Teijo C-1600 Front Loading Basket Washer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
