Riley 250 Baghouse Dust Collector

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability
Available for immediate collection
Condition
Unused, Current Model, Seen powered at RSW
Buy Now Add to Quote Contact Us

Finance available for variable duration and just the VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
EF2282J
Manufacturer
Riley
Model
250BH
Year of Manufacture
2026
Condition
Unused, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr
1500 // 2500
Filter Area ft² / m²
250 // 25
Other Info
Atex Rated Ex-Panel. Reinforced Doors
Weight (kgs)
525
External Dimensions (WxDxH mm) [?]
1380 x 940 x 2880
Delivery
Your delivery options

Description

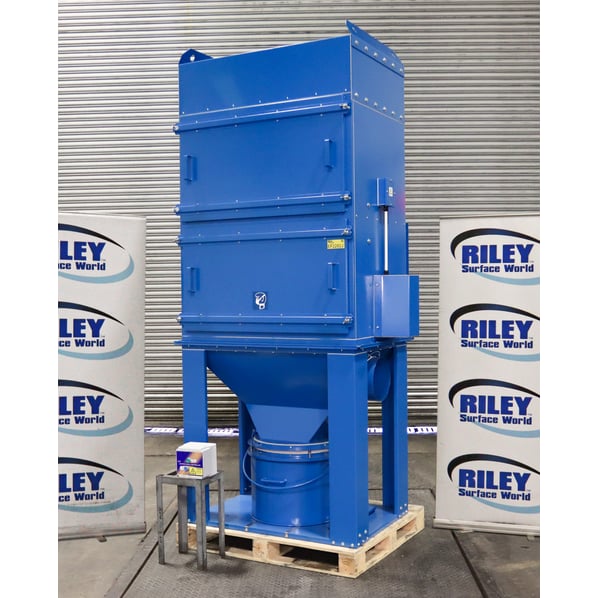

This Ex-Demo 250 Baghouse Dust Collector dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The 250BH is a compact, self-contained fabric filter dust control unit complete with 5.5kW  // 7.5Hp fan, self cleaning mechanism, easy-access filter assembly and a 2ft³ waste container bucket with quick-release sealer gear.

Design Features

  • Compact design.
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation.
  • Motors and fan are enclosed in collector housing to minimise noise.
  • 2ft³ collection bucket.
  • Silencer box.
  • Reduces noise levels in the environment.
  • Quick release lever allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils.
  • Inserted into filter bags keeps bags open to maximize airflow and assist in knocking the dust off during the cleaning cycle.
  • Bag-release screws allow for easy removal of bags.

Electrical supply: 415v/ 3ph / 50Hz / 5.5kw //7.5Hp
Dimensions: 1380 x 940 x 2880mm
Inlet: Ø255
Weight: 525kg

pdf icon Print / Download Riley 250 Baghouse Dust Collector Datasheet
