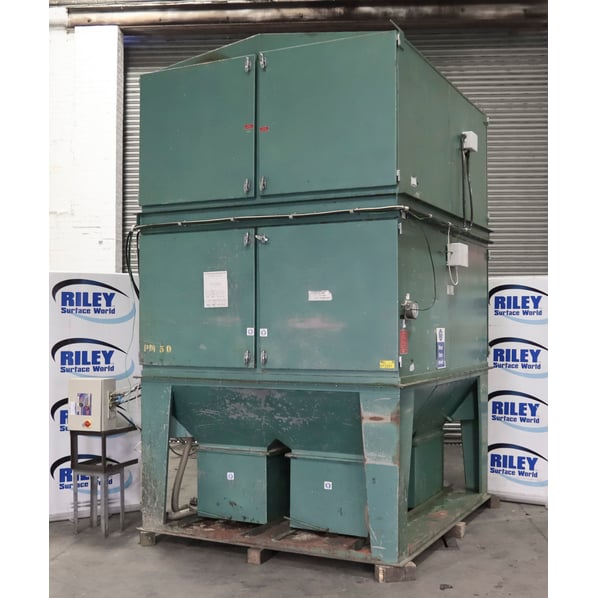

Filtex FX1500 Dust Extractor

Used / Second Hand
- Price
- Please call on +44 (0) 1922 45 8000
- Availability:
- In stock now
- Condition
- From a working environment, Good Condition
- Stock No
- EF2281
- Manufacturer
- Filtex
- Model
- FX1500 H
- Year of Manufacture
- 2002
- Serial
- 7478
- Condition
- From a working environment, Good Condition
- Approx Duty CFM / M³/Hr
- 6,000 - 12,000 // 10,200 - 20,400
- Filter Area ft² / m²
- 1500ft2 // 140m2
- Other Info
- Large capacity low footprint and hieght
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 2300
- External Dimensions (WxDxH mm) [?]
- 2160 x 2350 x 3610mm
- Delivery Your delivery options
Description
The FX1500 is an extremely versatile large capacity fine dust filter, capable of handling numerous dust types over a wide range of applications.
A completely self-contained dust collector, with fan, explosion relief, acoustic attenuator, HEPA secondary filtration for use with dangerous dusts, and automatic controller.
The FX1500 uses a range of high efficiency envelope filter elements tailor to the individual application. It is designed to accept a wide combination of air volumes for differing dusts to meet varying applications of intermittent processes. Hepa filter performance enables the recirculation of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air (heating or conditioning).
Available Filter Materials:
- Calico
- Polyester
- Secondary & Absolute
- Treatment Types
- Dust Release
- Epitropic
- Olephobic
- Glazed
- Anti-static CEB
Unit Size FX1500
- Fan Rating - @ 2240pa
- Course Dust - 20,305m³/h
- Medium Dust - 15,230m³/h
- Fine Dust - 10,150m³/h
- Cloth Area - 1500ft² // 140m²
- Motor Power - 11kw // 15Hp
Print / Download Filtex FX1500 Dust Extractor Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
