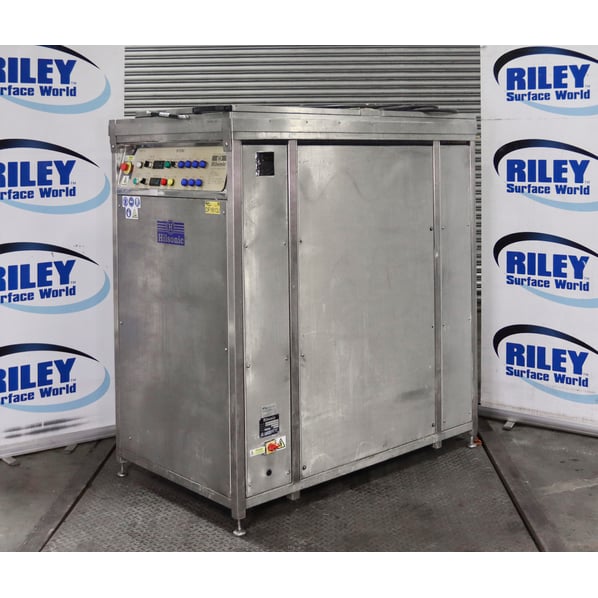

Hilsonic Large Stainless Steel Heavy Duty Ultrasonic, Heated Cleaning Tank with Twin Sparge Jets.

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DF1613J
Manufacturer
Hilsonic
Model
IST 3780
Year of Manufacture
2014
Serial
24076
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
1200 x 500 x 1150mm (690 Litres)
Process Stages
Single Stage plus Sparge Jets
Other Info
36 transducers 6 generators
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
500
External Dimensions (WxDxH mm) [?]
1850 x 950 x 2330mm (Lid Open)
Delivery
Your delivery options

Description

Hilsonic are a leading international suppliers of industrial Ultrasonic cleaning tanks.

  • Hilsonic are acknowledged as leaders in the supply of ultrasonic cleaning equipment to the power generation and marine industries. Their systems are suitable for a variety of purposes within these sectors including the cleaning of heat exchangers, intercoolers, charged air filter elements and particle filters. In addition, their systems can also be used for the cleaning of engine parts including pistons, valves, cylinder heads and engine blocks.

Operating Principles

  • The IST3780 generates electrical alternating currents at a frequency of 30Khz. This is applied to a ceramic transducers attached to the sides of the cleaning bath causing it to vibrate mechanically at the same frequency and so radiate sound waves throughout the liquid held in the bath.
  • As the cleaning power developed in the liquid is high (20 to 50 watts per litre), millions of tiny bubbles constantly form and collapse in a process known as cavitation. The implosion of these bubbles loosens and removes dirt from the surfaces they come in contact with.

Specification

  • Constructed from 316 Stainless steel.
  • 6 Ultrasonic generators.
  • 36 Transducers.
  • 2 Sparge Bars with 7 jets each.
  • 9kW of heating power.
  • Digital timer with on/off function.
  • Digital temperature controller with on / off function
  • Sparge pump with on / off function.
  • Crest AM 50-TRV low maintenance Mag Drive pump, 100L/Min.
  • Tank size 1200 x 500 x 1150mm (690 Litres)



pdf icon Print / Download Hilsonic Large Stainless Steel Heavy Duty Ultrasonic, Heated Cleaning Tank with Twin Sparge Jets. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
