Machines & equipment for sale

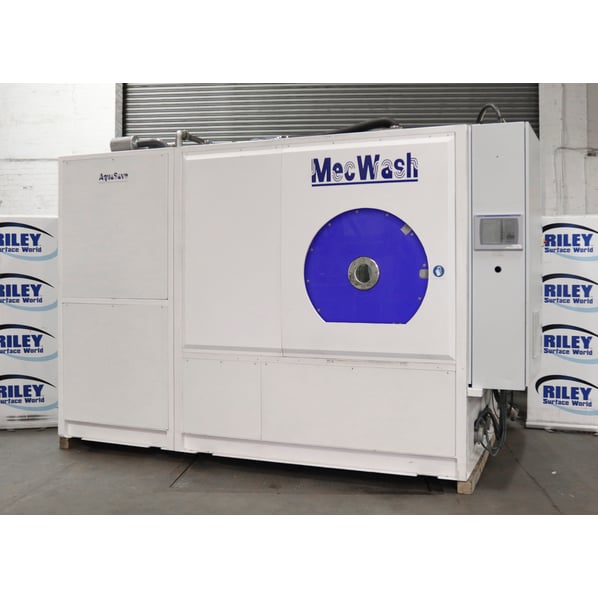

MecWash Maxi 1000 Industrial Parts Washer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DF1612J
Manufacturer
MecWash
Model
MAXI 1000
Year of Manufacture
2011
Serial
M548
Condition
Seen working by RSW, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
600 x 1000 x 600mm
Process Stages
Multi Stage (See below in Options Box)
Other Info
Charge Weight 200kg
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2750
External Dimensions (WxDxH mm) [?]
4200 x 2400 x 2700mm
Delivery
Your delivery options

Description

The Mecwash Maxi 1000 is a high performance industrial parts washer designed to deliver flexible aqueous ultrasonic cleaning & degreasing for demanding component cleaning. The cleaning system featuring ultrasonic washing, flood washing, rinsing, purgeair, hot air drying  and vacuum drying.

A fully automatic, highly customizable, self-contained aqueous cleaning system, the Mecwash 1000 meets the highest aerospace, automotive, and hydraulic industry cleanliness standards.

Operation

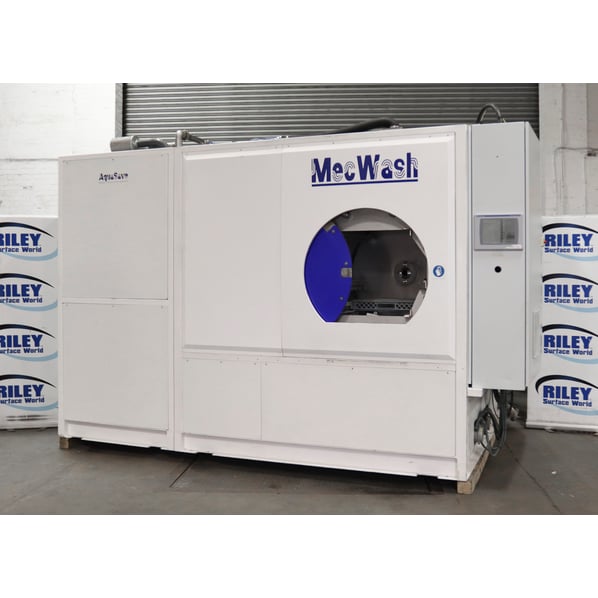

Ideal for cleaning large individual components or smaller components with high volumes, the Maxi has a cleaning chamber that measures (WxDxH) 600mm x 1000mm x 600mm. For larger single components or smaller parts with higher volumes thus providing 360 Litres of cleaning volume per cleaning cycle.

The Maxi's highly versatile single chamber rotational cleaning system features an ultrasonic wash & rinse, immersion wash & rinse, purge blow off dry, hot air dry, and vacuum dry for complex components. MecWash aqueous technology cleans without solvents or emissions and is effective for large and small components, components with complex geometries, components that require special fixturing, or it can hold high volumes of components retained in the large wash basket each cleaning cycle.

The wash chamber can be configured in many ways. All can thoroughly penetrate and saturate the workload using the ultrasonic wash, followed by a flood wash, full rotation of the workload at between 2-10 RPM exposes all surfaces to the wash and rinse solutions to ensure effective cleaning, draining, and drying. Alternately, delicate components can be cleaned using a program setting of oscillation, which gently tips the components from side to side.

For complicated components with extremely high cleanliness requirements, the ultrasonic wash process is followed by a flood and spray wash, an ultrasonic rinse, a flood and spray rinse, and a high velocity hot air dry cycle. If necessary, a vacuum dry cycle can follow the hot air dry. Vacuum drying is effective for pulling water out of blind holes and long machined passages where water may otherwise be retained due to capillary effect. Total cycle times range between 3 to 20 minutes, depending on the specific components to be cleaned. Lastly, for companies concerned about using a water-based cleaning process to clean iron and steel components, MecWash aqueous chemicals are uniquely formulated with rust inhibition to prevent corrosion for up to two weeks after cleaning, regardless of the season.

Options to Upgrade

  • One option would be to design and manufacture a fixture that would sit in the drum, utilising the rear feed but with nozzles that would provide a spray.
  • Another option would be to just use the machine as it is but modify the program use the existing nozzles but keep the drain open. Therefore, it would not flood, or modify the manifold, so that spray nozzles can be fitted to increase the spray pressure.
  • This machine is also equipped with a central rear wash & rinse option which can be used in conjunction with the washing programmes to give additional cleaning options including spray washing and rinsing using specially adapted spray bars and nozzles which can be fitted to this machine as an option.
(Please ask for details)



Multi Stage Cleaning, Rinsing & Drying Cycle

  • Ultrasonic washing
  • Flood washing
  • Ultrasonic rinse
  • Flood rinse
  • Purge air drying
  • Hot air drying
  • Vacuum drying

Additional Cleaning Power (Additional Spray Booms Required)

  • This machine is fitted with a rear central cleaning system
  • Central feed spray wash
  • Central feed spray rinse
  • Purge air drying

Tanks

  • Recirculating wash tank capacity - 1400 Litres
  • 36kW heating elements
  • Cartridge filter 30µm
  • Recirculating rinse tank capacity - 1100 Litres
  • 36kW heating elements
  • Cartridge filter - 30µm
  • Aqua save capacity - 50 Litres

Ultrasonics

  • 3 x Generators at 2000W per generator
  • 25kHz
  • 3 x Rod transducers

Invertors

  • Hot air dryer blower motor
  • Wash pump motor
  • Rinse pump motor
  • Drum drive

Services

  • 400Volt, 50Hz, 3 Phase & Earth
  • 160A
  • Pneumatics - Min 5 Bar, twin air supply
  • Water Mains supply - 3 -5 bar min flow 25L/Min
  • Steam extraction 6" diameter flue connection if no condenser is supplied

Additional Features

  • Chemical dosing pump
  • Waste drum
  • Air venting
  • Coalescer
  • Demin water metering units
  • Aqua-Save system
  • Full set of  manuals

pdf icon Print / Download MecWash Maxi 1000 Industrial Parts Washer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
