Machines & equipment for sale

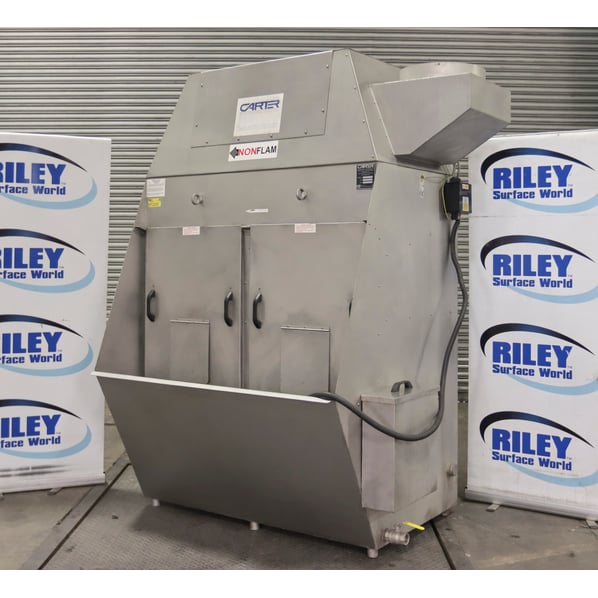

Carter Environmental Thorn Nonflam Stainless Steel W185 Wet Collector

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EF2280
Manufacturer
Carter Environmental
Model
W185
Year of Manufacture
07/2017
Serial
170178
Condition
Seen working by RSW, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
3500 // 6000
Filter Area ft² / m²
Wet Curtain
Other Info
11 Kw Fan // Atex Rated Wet Collector
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
630
External Dimensions (WxDxH mm) [?]
1670 x 1219 x 2745mm
Delivery
Your delivery options

Description

The Carter Environmental Thorn Nonflam Stainless Steel W185 Wet Collector is a robust wet extractor engineered in stainless steel for durability and high-performance dust capture. Featuring an integrated 11kW fan, self-induced wet scrubbing system, and high-efficiency filtration up to 98%, it delivers powerful airflow of 3500 CFM (6000 m³/hr) in a compact, easy-to-maintain unit.

Designed with accessibility and reliability in mind, this wet system utilise a turbulent water bath to effectively strip the air of dust from operations involving polishing, grinding, and de-burring. Suitable for being installed at part of dust generating processes such as a stand alone downdraft bench, or even full dust control booths for larger parts. Also able to be used for other processes that create heavy sparks and dust, such as the cutting, grinding, air arcing, and thermal spraying of various types of metals (like aluminium, magnesium, titanium, zirconium, lithium, and tantalum for example).

The Nonflam wet collector is a self-induced wet scrubber that has been developed over many years to offer the ideal solution to hot gas streams laden with dusts. Potentially explosive dusts such as Titanium and Aluminium can be handled safely and Magnesium can be extracted when fitted with auto water level control.

These high-efficiency collectors can be located inside or outside when fitted with a sump frost protection heater.

Features and Benefits

  • Simple eliminator removal for cleaning.
  • Automatic water level control and indicator.
  • Self-induced wet scrubbing always provides full extraction rates.
  • Easily removable front door for easy access to eliminators, inducer and sludge removal.
  • High-efficiency filtration.
  • Fan set with silencer.
  • Weather protection hood option for outside location.
  • Can handle Titanium, Aluminium and Magnesium (with optional control system).
  • Efficiency levels of up to 98%.
  • Integrated 11kW fan.
  • Easily maintainable.

pdf icon Print / Download Carter Environmental Thorn Nonflam Stainless Steel W185 Wet Collector Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
