Machines & equipment for sale

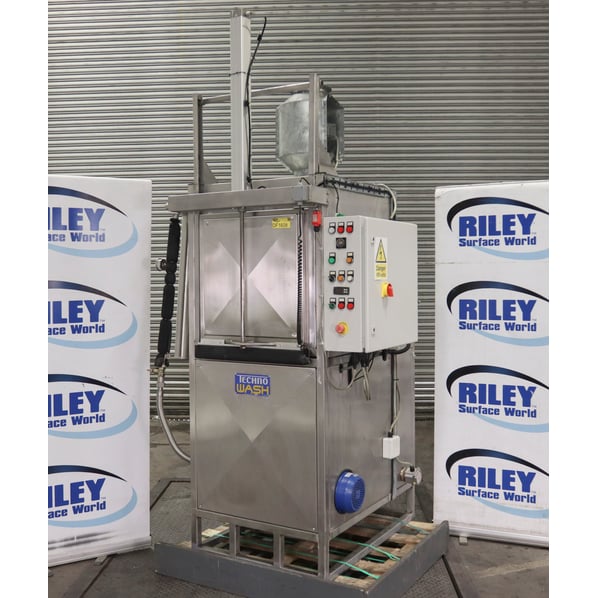

Technowash Stainless Steel Front Loading Washing Machine, AQF600/S

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DF1608
Manufacturer
Technowash
Model
AQF600/S
Year of Manufacture
12/2007
Serial
50412
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
600 x 300 x 300mm (Basket size)
Process Stages
Single Stage
Other Info
Tank Volume 200 Litres Max. Load 100Kgs
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
350
External Dimensions (WxDxH mm) [?]
700 x 1000 x 1600mm
Delivery
Your delivery options

Description

This machine is specifically designed to wash components using water and biodegradable detergents up to 80°C. It is stainless steel with a pneumatically controlled uplifting door, hi-pressure jet washing with integral filtering, steam extraction. All controlled via a comprehensive control panel.

Control Panel

  • Wash Temp controllers: Allows the operator to adjust and set the hot wash fluid temperatures to suit the process in hand.
  • Mains Power On Light: Indicates to the operator that the control panel is connected to a live mains electric power supply.
  • Emergency Stop Button: Allows the operator to quickly shut down all of the machine's functions simultaneously in the event of an emergency.
  • Control On Button: Re-sets all of the control panel functions after the emergency stop button has been pressed and then deactivated. If this button is not activated after an emergency stop then none of the control panel functions will be able to be used.
  • Cycle Stop / Start. Allows the operator to manually start or stop the selected wash cycle.
  • Heat on / off. Allows the operator to manually switch the machines fluid heaters on and off as required.
  • Heating: Indicated when the wash tank's fluid heaters are switched on and are warming up to temperature.
  • Door Open: Allows the operator to open the wash plant's front door , unless the machine is in use, in which case the button will not function.
  • Door Safety Monitoring Active:  Will stop the door from closing in the event of something becoming trapped in the door.

Power Requirements

  • 3 Phase, 415 Volt Neutral and Earth 50 Hz, 32 Amps

Spec.

  • 9kW Heater
  • 4.0kW Wash pump
  • 100 Litres / Min flow rate @ 5 Bar
  • Timer
  • Steam Extraction with Bifurcated fan
  • Inline Filters, Eton EKF-130-E

pdf icon Print / Download Technowash Stainless Steel Front Loading Washing Machine, AQF600/S Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
