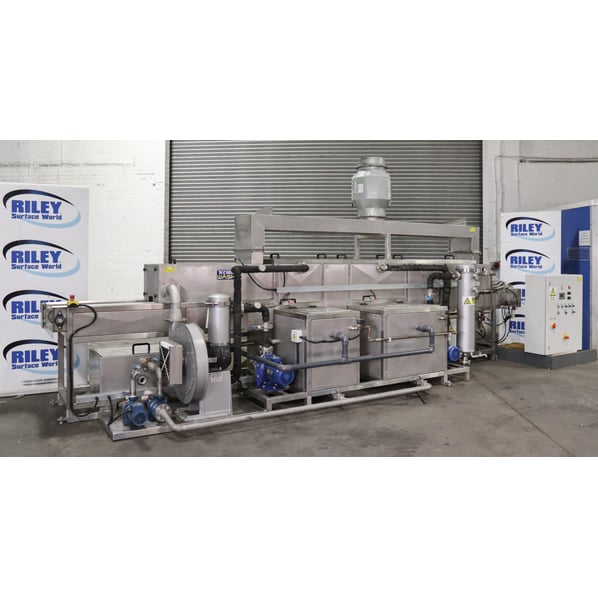

Technowash AQF300/4 Multi Stage Conveyor Cleaning Line

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DF1607J
Manufacturer
Technowash
Model
AQF300/4
Year of Manufacture
2013
Serial
51075
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
300 x 6000 belt length x 300
Process Stages
4 Stage
Other Info
Multiple jets for all stages
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
6000 x 1600 x 2650
Delivery
Your delivery options

Description

This Technowash AQF 300/4 is designed for industrial parts washing with unparalleled precision cleaning for all types of component parts, finished or semi-finished. The process stages are blow off, hot aqueous spray jet washing, blow off, hot jet rinse, blow off jets and air knife blow off. There are two vent points connected by ducting and a bifurcated fan for the steam and fume extraction.

Operation

The components are fed through the washing machine on a stainless steel conveyor belt. The first stage of the process is an array of air jets set up to blow off any loose debris before the wash stage. High pressure heated cleaning fluid is then sprayed onto the components from all angles as the parts pass the multi jet system, any dirt is washed off before the air blast cleans away any residual wash solution.

The parts then pass through the rinsing high pressure jets to swill off any remaining cleaning solution and debris before passing through the final stage where the parts are subjected to high pressure air blasting from multiple air jet nozzles and air knifes to leave the components clean and dry.

Current Fixture and Track Restrictions

All the fixtures and track restrictions can be upgraded to the standard specifications resulting in a full width track of 300mm and a height of up to 300mm



Specifications

  • Stainless steel construction
  • Siemens programmable controller
  • Digital temperature controllers for wash and for rinse tanks
  • 4 x 12 kW heaters.
  • 4 x pumps,  for wash, rinse and waste tank emptying ( 3kW  // 4Hp each pump)
  • Lowara pumps 25M³/Hr Max. flow rate

Wash Tank

  • 1100mm x 800mm x 400mm
  • 350 Litres approx
  • Twin heating elements
  • Inline filter

Rinse Tank

  • 1100mm x 500mm x 350mm
  • 200 Litres approx
  • Twin heating elements
  • Inline filter

Waste Tank

  • 850mm x 500mm x 400mm
  • 170 Litres approx

Please Note: This machine is currently configured to clean components up to 85mm wide and up to 100mm tall

pdf icon Print / Download Technowash AQF300/4 Multi Stage Conveyor Cleaning Line Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
