P&P Products Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EF2276
Manufacturer
P&P Products
Model
Floor Mounted 18.5kW
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
8000 // 13,500
Filter Area ft² / m²
2688ft2 // 250m2
Other Info
18.5kW // 24Hp Fan Motor, Inc. Baffles
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2440x1640x2750mm, Fan-1150x1650x2900mm
Delivery
Your delivery options

Description

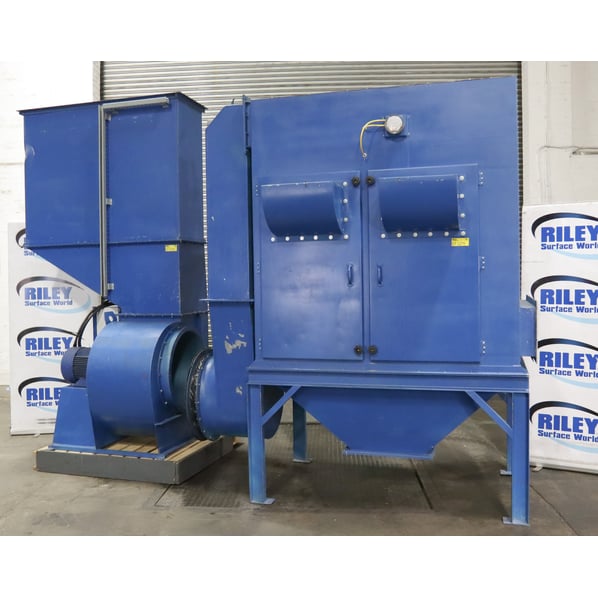

This dust collector was designed to extract dust and fumes from a shot blast room. Complete with a separate floor mounted 18.5kW // 24 Hp fan with internal baffles for noise reduction.

The P & P Products Dust collectors is a systems specifically engineered for dust extraction from a shot blasting room. This machine would lend itself to a various other applications . These collectors use cartridge filters making dust and fume filtration more efficient, compact and cost-effective.

Main Features

  • Flow rates up to 8,000 CFM // 13,500m³
  • 12 filter cartridges (2625023E Ultra web)
  • Ultra web filter area of 2688ft² // 250m²
  • 18.5kW. / 25Hp.
  • Floor mounted fan with internal baffles for noise reduction
  • Closed coverage type (complete system) and quiet operation
  • Fast and easy installation, easy maintenance with quick-access filters
  • Energy cost saving due to low energy requirements
  • Explosion relief panels (4)
  • Pressure differential gauge
  • Pulse jet cleaning system

Connection Details

  • Inlet - Ø600mm
  • Roof outlet through 3 baffle plates for noise reduction
  • Outlet size 1600mm x 575mm, baffles reduce outlets to 1500mm x 85mm

pdf icon Print / Download P&P Products Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
