Donaldson Torit (DCE) UMA454 G11 Dry Bag House Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EF2274
Manufacturer
Donaldson Torit (DCE)
Model
UMA454 G11
Year of Manufacture
c. 2000
Serial
600164
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
3500 // 6000
Filter Area ft² / m²
450 ft2 // 42m2
Other Info
ATEX explosion relief panel (2020)
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
641
External Dimensions (WxDxH mm) [?]
1600 x 1100 x 3100
Delivery
Your delivery options

Description

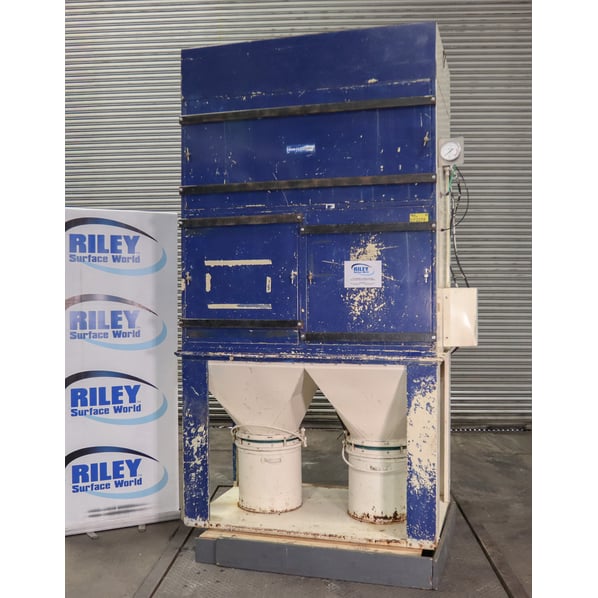

This DCE Unimaster 454 G11 dust collector from Donaldson Torit is designed to maximize dust collection with the minimum amount of maintenance. Powerful 7.5kW / 10Hp fan and twin HEPA filters housed in the top acoustic silencer.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy.

This pre owned DCE Unimaster 454 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design Features

  • ATEX explosion relief panel installed 2020.
  • Compact design minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation, Motors and 7.5kw /10Hp fan are enclosed in collector housing to minimize noise.
  • Easy maintenance.
  • 2 x 2ft³ collection buckets.
  • Quick-release bucket levers allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • 2 x 300mm inlet positions currently fitted with single entry with transition pieces.
  • Heavy duty flexible metal inner bag coils inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag release screws allows for easy removal of bags.
  • Acoustic silencer fitted to reduce the noise levels to below 78dBs.
  • Twin HEPA filters mounted on the clean air side.

pdf icon Print / Download Donaldson Torit (DCE) UMA454 G11 Dry Bag House Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
