Machines & equipment for sale

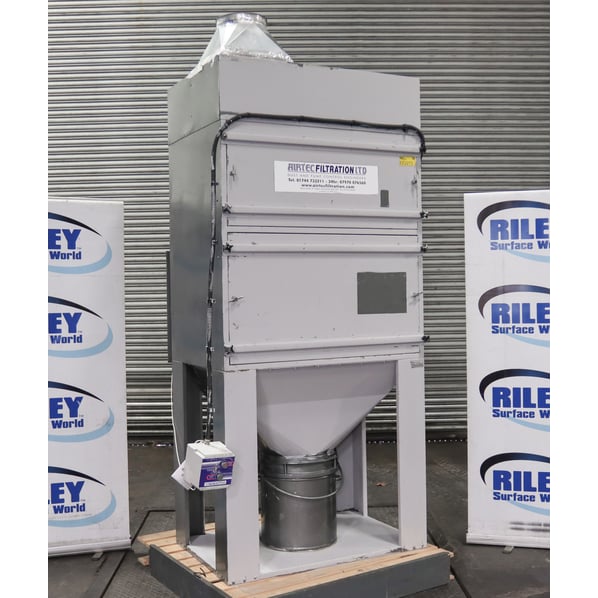

Air Plant Dust Extraction Ltd CEF 276 Dust Extractor with ATEX Explosion Relief Panel

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
EE2273
Manufacturer
Air Plant Dust Extraction Ltd
Model
CEF T2 (5.5kW)
Year of Manufacture
03/2007
Serial
CEF 276
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
2500//4250
Filter Area ft² / m²
276//26
Other Info
ATEX Rated explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1450 x 1100 x 2800
Delivery
Your delivery options

Description

The Air Plants Series of dust control systems are designed to provide economical and effective solutions to a wide variety of dust problems throughout industry. A high quality, compact design solution for dust control problems.

The CEF2 dust control system is a completely self-contained bag fabric filter designed for intermittent duty. Fitter cleaning is automatically activated when the unit is turned off during periods of non-use. The filter bags themselves are available with a wide range of available materials and grades to suit differing processes and materials.

CEF2 dust control units are self-contained and complete including fan, easy access filter assembly, single inlet hopper and waste dust container with quick release sealer gear, acoustic diffuser (Reduces Noise) and Explosion Relief panel (For Use With Explosive dusts)

Operation

The dust-laden air from the dust generation source is drawn through the inlet to the fitter by the fan. Initially, some pre-separation takes place as heavier dust particles lose momentum and fall into the collection bin or hopper.

Finer dusts are carried up to the filter elements where they are retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged to atmosphere.

When the fan is switched off, the filter fabric cleaning cycle is automatically activated. The dust collected on the filter face is then dislodged from the filter elements and falls into the collection bin below.

Design Features

  • Compact design to minimises floor space and fit in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & efficient operation - Motors and fan are enclosed in collector housing to minimise noise.

pdf icon Print / Download Air Plant Dust Extraction Ltd CEF 276 Dust Extractor with ATEX Explosion Relief Panel Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
