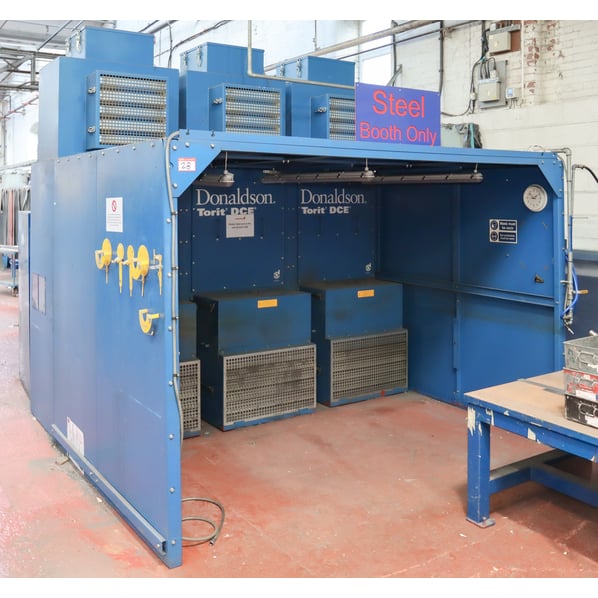

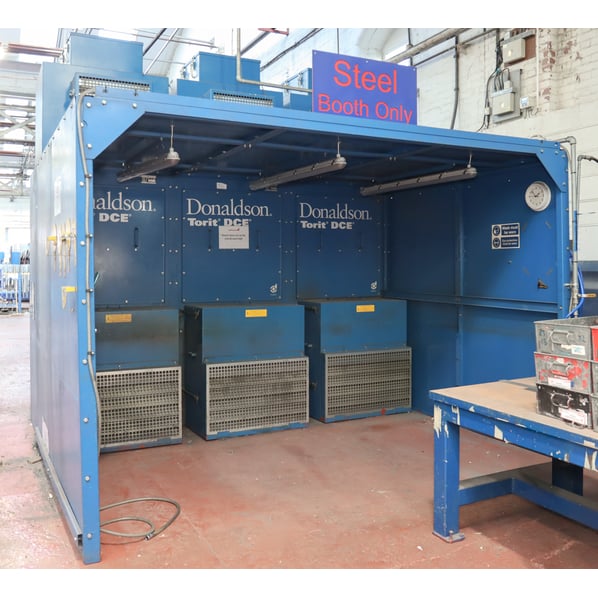

Donaldson Torit (DCE) ECB-3 Rear Extraction Linishing / Fettling Booth

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EE2270
Manufacturer
Donaldson Torit (DCE)
Model
ECB-3
Year of Manufacture
2013
Serial
90514323B
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
6000CFM// 10000M3.Max Op Pressure 5 kPa
Filter Area ft² / m²
18 Cartridge Ultra Web = 3700ft2 / 378M2
Other Info
3 x 6 Cartridge
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
Approx. total weight 3375kg
External Dimensions (WxDxH mm) [?]
3450 x 3000 x 3500mm
Delivery
Your delivery options

Description

This Donaldson Torit DCE extraction booth, offers a flexible and universal work station for finishing works on large and irregularly shaped parts. A self-contained working environment is specially designed to remove fine airborne dust from multiple sources, ensuring very efficient dust control.

Extraction Specification

  • Model - Donaldson Torit ECB-3 Environmental Control Dust Collection Booth
  • Approx. Duty CFM / m³/Hr - 6000 CFM // 10000m³
  • Filter Area (ft²/m²) - 118 Cartridge 185.4m² (ultra web - 378m²)
  • External assembled size (approximated) -  3450mm x 3000mm x 3500mm
  • Weight per extraction unit - 1125kg
  • Maximum operating pressure - 5 kPa (500mm WG)

Features

  • Stand-alone unit
  • Control panel
  • High filtration efficiency with Ultra-Web® cartridge filters (optional)
  • Freedom of movement and improved visibility
  • Flexibility to increase capacity
  • Requires no ductwork
  • Safely recirculates cleaned air for reduced energy costs
  • Reverse pulse jet cleaning controlled via Integrated pulse controller
  • Blow off gun and pressure regulator from the original process
  • Internal lighting

Technical

  • Internal booth size (WxDxH) - 3429mm x 2000mm x 2286mm (TBC)
  • Fans - 3 off, 4 kW // 5.5Hp fan sets. Total of 12kW
  • Number of fan sets: 3
  • Number of cartridges: 18
  • Open inlet louvres fitted (Option to fit additional spark trap)
  • Approx. total weight - 3375kg
  • Option to fit curtains to the front of the booth



Modular units that can be expanded

This highly efficient extraction booth system is of modular design so additional work stations can be added.

To expand this three station booth to a four station booth, has been priced at just under £17,000.  (This is for a brand new ECB PM booth with Ultra Web filters)

Please ask for details.



pdf icon Print / Download Donaldson Torit (DCE) ECB-3 Rear Extraction Linishing / Fettling Booth Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
