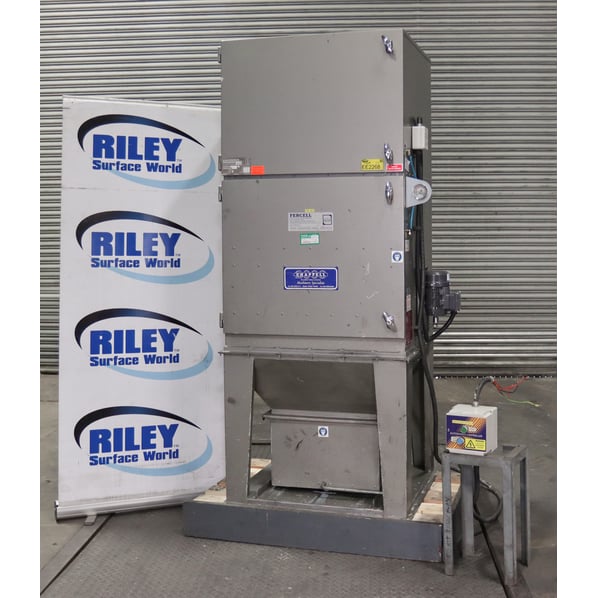

Filtex FX125 Type H, Fully Self Contained Dust Extraction Unit

Stock No

EE2268

Manufacturer

Filtex

Model

FX125 Type H

Year of Manufacture

2004

Serial

10099

Condition

Good Condition, Current Model, Seen powered at RSW

Approx Duty CFM / M³/Hr

1000cfm // 1700m³/Hr

Filter Area ft² / m²

125 / 11.61M²

Other Info

Includes Explosion Relief Panel

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

400

External Dimensions (WxDxH mm) [?]

1100 x 900 x 2160mm

Delivery

Your delivery options

Description

This second hand FX125H 2.2kW // 3 Hp self contained centrifugal extraction fan is an extremely versatile fine dust filter, capable of handling numerous dust types over a wide range of applications.

Features

• A completely self-contained dust collector, with integral fan, acoustic attenuator and automatic controller the FX uses high efficiency envelope filter elements to cope with fine and light dusts.
• Designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.
• Benefit from standard zintec steel for even more demanding environments.
• The FX filter performance enables the recirculation (in some circumstances) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.
• The above design duties are based on an 8:1 cloth to air ratio. A variety of filter medias are available.

Technical Specifications

• Model - FX 125
• Capacity - 1,000 cfm @ 7.0” swg 1,700 m3/Hr @ 178mm
• Fan size - 2.2kW // 3 Hp
• Filter area - 125ft² // 11.6M²
• Bin capacity - 2.5ft³ // 75 litres
• Noise level - 76dB(A)
• Overall dimensions - 1100mm x 900mm x 2160mm
• Weight - 400kg

The above design duties are based on an 8:1 cloth to air ratio.

Print / Download Filtex FX125 Type H, Fully Self Contained Dust Extraction Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
