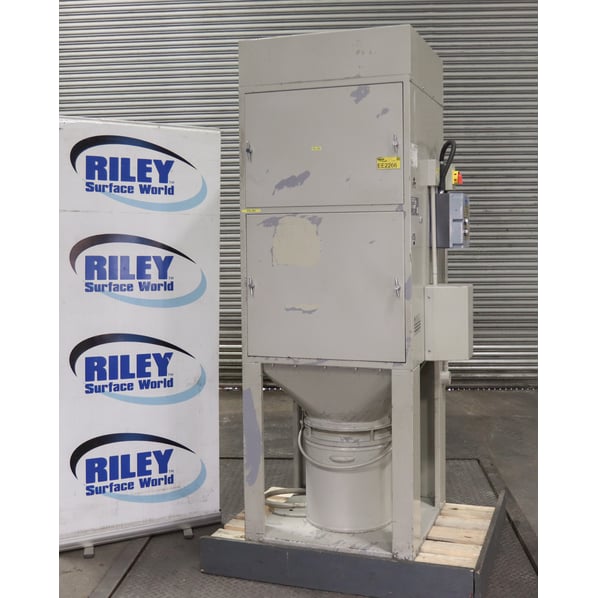

Donaldson Torit (DCE) UMA Unimaster 152 G3 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EE2266
Manufacturer
Donaldson Torit (DCE)
Model
152 G3
Serial
133,691
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
750 // 1275
Filter Area ft² / m²
150 // 15
Other Info
ECT Shaker Controller
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
262
External Dimensions (WxDxH mm) [?]
950 x 800 x 2250mm
Delivery
Your delivery options

Description

Unimaster UMA 152 from  Donaldson Torit® DCE® is a universal dust collector, it is an economical and effective solution for a wide range of applications including abrasive blasting, polishing and buffing, grinding, packing of tea or detergents, weighing and mixing of paint pigments, food processing applications and a host of other operations where nuisance dust is generated.

  • The Unimaster dust collector reduces airborne contaminants from the working environment, helps improve air quality for your employees and product quality for your customers. Effective dust control is guaranteed.
  • Unimaster is a compact shaker-type, intermittent duty collector with a wide variety of configurations and filter bag materials.

Main features:

  • Dust capture at all manufacturing points and flexibility of operation
  • Compact design with flat envelope shaped multipad filters for high capacity
  • Range of fabrics available for filter to suit applications
  • Advanced 1.5kW // 2Hp fan design with reduced noise levels
  • Sound reducing hood
  • Multi position inlet manifolds.
  • Easy to install/connect and service
  • No requirements for compressed air

Versatility and dust capture at all points

Highly adaptable, the Donaldson Torit DCE Unimaster dust collector is ideal for intermittent operations in plant processes. Several space-saving units can be placed at dust generation points resulting in total dust capture from the manufacturing processes:

Efficient filtration operation with cost-effective self-cleaning cycle

Utilising high performance Unimaster filters, contaminated air is drawn in through the inlet to the filter by the fan. Initially, some pre-separation takes place as heavier dust particles lose momentum and fall into the hopper.

Finer dusts are carried up to the filter elements and retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged. At the end of the process or of a shift the fan is switched off and the filter fabric cleaning cycle commences: Dust is dislodged from the filter elements and falls into the collector. This cleaning cycle requires no compressed air, reducing the services required and operating costs.

pdf icon Print / Download Donaldson Torit (DCE) UMA Unimaster 152 G3 Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
