Machines & equipment for sale

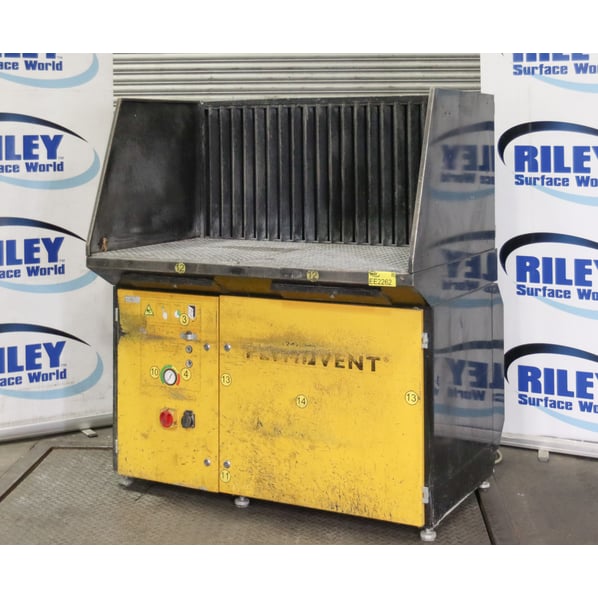

Plymovent Draftmax Ultra Bench

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EE2262
Manufacturer
Plymovent
Model
DraftMax Ultra
Serial
D0361310014
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
1500CFM // 2500M3/Hr
Filter Area ft² / m²
560ft2 // 52M2
Other Info
Pulse Jet Filter Cleaning
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
255
External Dimensions (WxDxH mm) [?]
1380 x 1005 x (920mm to 970mm)
Delivery
Your delivery options

Description

This Plymovent downdraft table with automatic self cleaning filters, side panels and a backdraft kit is ideal for MIG and TIG welding. Plus other forms of welding, grinding and cutting applications.

The DraftMax Ultra is a workbench that provides extraction and filtration for welding and grinding applications. Featuring a work grid, a three-stage pre filtration system for optimum spark arresting and two self cleaning main filter cartridges.

Both pre and main filters have pull-out dust drawers underneath. The filter cleaning system starts when the pressure drop reaches a certain maximum value during use (online cleaning).The filter cartridges are individually cleaned from the inside by compressed air shots.

An integrated buzzer indicates when the filter cartridges need to be replaced.

For welding and grinding applications the DraftMax Ultra must be fitted with a backdraft kit for optimum division of the extraction capacity (approx. 80% backdraft, 20% downdraft). Filter exchange and service (except for the membrane valves) can be effected from the front side.

Applications

The DraftMax Ultra is intended to be used for the following applications:

  • MIG-MAG/GMAW welding1
  • TIG welding1
  • FCAW welding
  • Stick/MMAW welding
  • Grinding
  • Cutting (max. 50 A)

Specifications

  • 2.2kW 3Hp Motor
  • 3 stage spark arresters (below work grid, labyrinth spark trap and spark arrester in main filter housing)
  • Simple control
  • Option to add Hepa filters

pdf icon Print / Download Plymovent Draftmax Ultra Bench Datasheet

Additional files

Plymovent Maxdraft Ultra

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
