Machines & equipment for sale

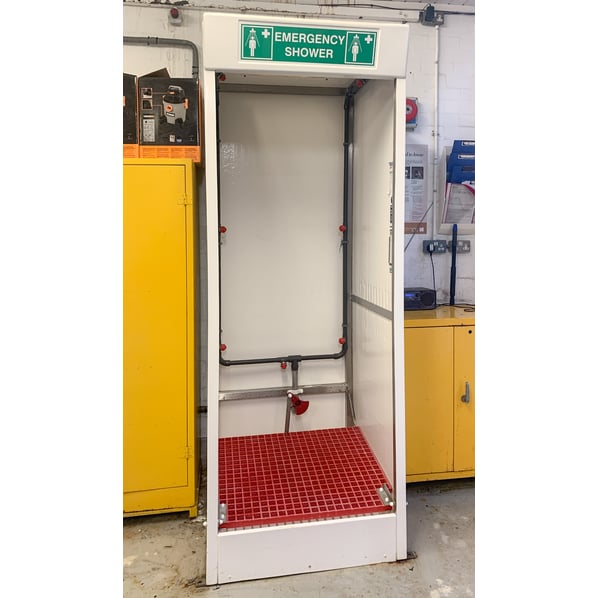

Hughes Multi-Nozzle Cubicle Safety Shower

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Derby Plating Services - Factory Clearance & Business Opportunity
Condition
From a working environment, Excellent Condition, Current Model
Add to Quote Book Appointment
Stock No
DPS320
Manufacturer
Hughes
Model
STD-SD-31K
Year of Manufacture
March 2020
Serial
100661
Condition
From a working environment, Excellent Condition, Current Model
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
145kg
External Dimensions (WxDxH mm) [?]
955mm x 998mm x 2409mm
Delivery
Your delivery options

Description

Ensure rapid and reliable decontamination with this high-performance, multi-nozzle emergency safety shower, enclosed within a durable, corrosion-resistant GRP cubicle supported by a robust stainless steel frame.

Designed for maximum safety and efficiency, it delivers a powerful 115 L/min flow rate through multiple spray nozzles, activated automatically by a hands-free foot panel for instant response in emergencies. The integrated drain sump keeps surrounding areas clear of contaminated water, ensuring a safer workspace.

Built to meet EN15154 and ANSI Z358.1-2014 standards, this unit offers full-body decontamination and the option to mount a closed bowl ASA eye/face wash externally for added protection.

Specification

Material Of Construction

  • Pipework & fittings - uPVC and stainless steel
  • Frame - Stainless steel
  • Operating valve - Stainless steel, full bore, stay open ball valve
  • Shower nozzles - uPVC
  • Standard finish - H GRP

Services

  • Water inlet - 1” male BSP
  • Operating pressure - 3 to 6 BAR G / 43 to 87 PSI (higher supply pressures accommodated with the incorporation of the optional pressure reducing valve)
  • Minimum flow rates - Shower: 76 L per minute

Ambient Operating Temperature

  • Minimum - 5°C
  • Maximum - 35°C

Operation

  • Shower - Foot panel

pdf icon Print / Download Hughes Multi-Nozzle Cubicle Safety Shower Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
