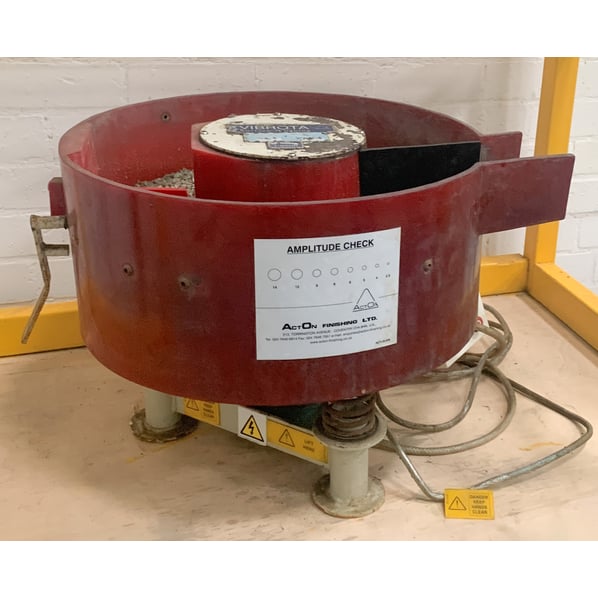

Acton VB1S Bench Mounted Vibratory Bowl

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Derby Plating Services - Factory Clearance & Business Opportunity
Stock No
DPS330
Manufacturer
Acton
Model
VB1S
Type
Vibratory Round Finishing Bowl
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

The Acton VB1S circular vibratory bowl with flat bottom when using the appropriate finishing media and chemical additive combinations, provides a wide spectrum of finishes from simple deburring, edge breaking, degreasing, radiusing.

Vibratory finishing machines are widely used for de-burring, polishing, descaling, de-rusting and fine finishing of various metal and plastic components.

The upper portion of the machine, the work bowl, has a powerful vibratory motor fitted on to it. This Motor imparts powerful vibrations to the mass of components, media and liquid compound in the work bowl. Due to the vibrations, this mass moves along a rotary and spiral path inside the work bowl thereby causing the media to continuously be in contact with the components resulting in the desired finish being imparted to the components.A media/parts separation system can be incorporated, as can an optional compound dosing pump.

The main feature of Acton vibratory finishing machines is the powerful heavy-duty vibratory motor, which is used to impart the vibrations. The machine is supplied with a moulded, hot cured polyurethane work bowl, for longer life.

Work Bowl Details

  • Capacity - 28 Litres
  • Material - Moulded polyurethane
  • Type of machine - Circular/Spiral
  • Media/Parts separation - Included

Approximate Dimensions

  • Thickness of wall - 7mm
  • Outer Diameter - 540mm
  • Chamber width - 150mm
  • Overall dimensions (DxH) - 550mm x 460mm

Motor Details

Double extended shaft with eccentric weights mounted on both ends

  • Single speed 1440rpm 100watt 3 phase 415 VACS0Hz
  • DOL Starter ON/OFF.

pdf icon Print / Download Acton VB1S Bench Mounted Vibratory Bowl Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
