Machines & equipment for sale

Optimal Technologies SinapTec 8 Universal & Digital, Ultrasonic Generator Bank

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DE1604
Manufacturer
Optimal Technologies
Model
1500 Watt Ultrasonic Generator Bank (FCP 800-16)
Year of Manufacture
2024
Serial
12-640
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
Configured to drive 40 kHz Transducers
Process Stages
2 off, Single Stage
Other Info
Frequency up to 120kHz
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
900 x 675 x 1050mm
Delivery
Your delivery options

Description

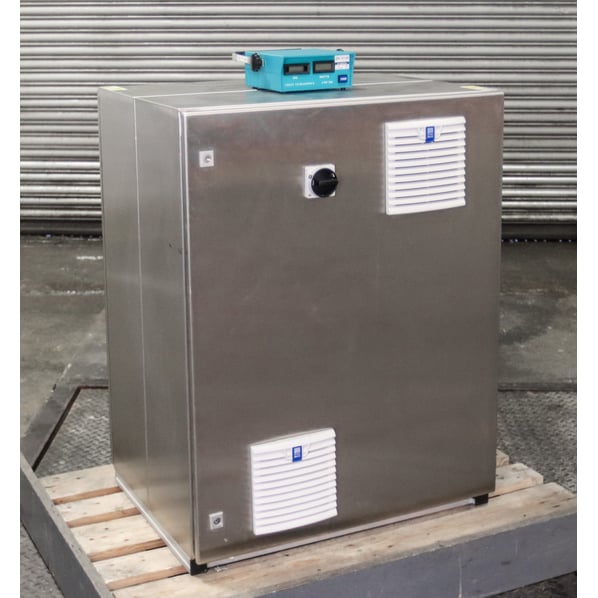

The Inside 1500 generator can be set to control piezoelectric transducers, which work within a frequency range from a few kilohertz to 120 kHz and with a power of up to 1500W. Two banks of 4 generators comes in a stand alone stainless steel cabinet. They are set up back to back with a door at each side. 4 generators in each side. Total power available is 12kW. Generators are configured to drive a 40 kHz ultrasonic tank.

  • LED display for the state of each generator, white, green, orange and red.
  • Digital input/output.
  • Protection against over-voltage, over-current, over-temperature and frequency changes.
  • Compatible with ethernet or RS485 communication network.
  • Two stainless steel cabinets set up back to back.
  • Two sets of 4 generators.
  • Crest CWF 200  Watt frequency meter.
  • Ideal for use with the NexTgen ultrasonic software.
  • Generators are configured to drive a 40 kHz ultrasonic tank.

SinapTec 'Inside 1500 Ultrasound generator' manual and SinapTec 'NexTgen Software' manuals available.

pdf icon Print / Download Optimal Technologies SinapTec 8 Universal & Digital, Ultrasonic Generator Bank Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
