Machines & equipment for sale

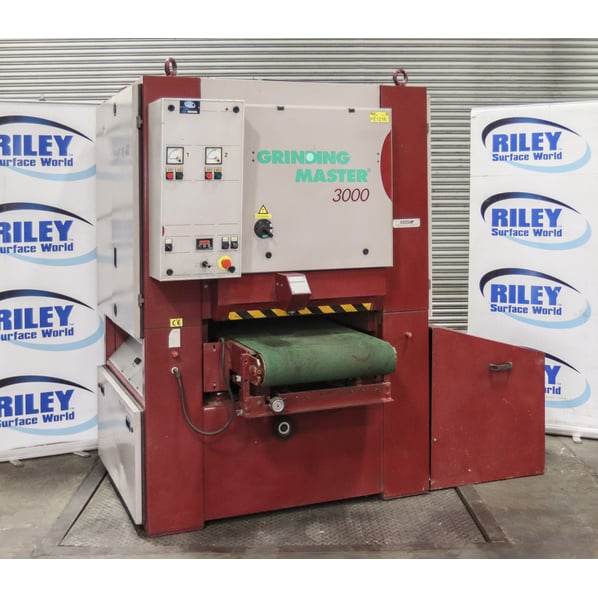

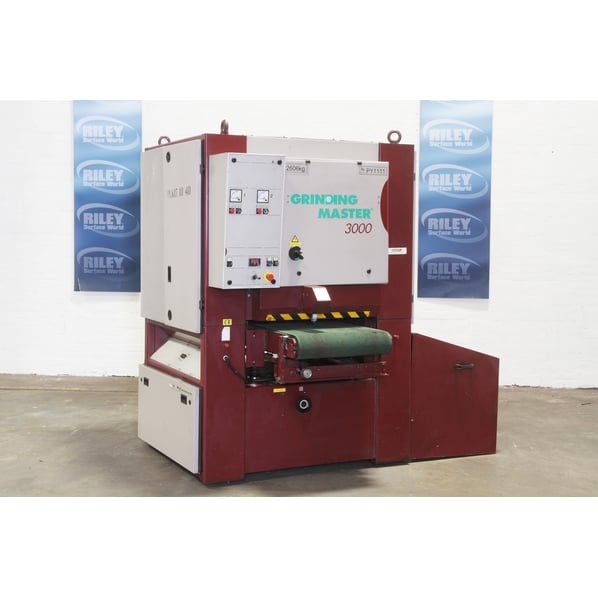

Ellesco Grindingmaster 3000 - (Slag Grinder)

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
Arriving in stock soon, available for purchase now.
Condition
From a working environment, Excellent Condition
Contact Us
Stock No
PE1216
Manufacturer
Ellesco
Model
GR-3200-600
Year of Manufacture
1996
Serial
TA-2105-02
Condition
From a working environment, Excellent Condition
Hp/Kw
Twin Belt Linish Head each 40Hp / 30Kw
Other Info
Very Heavy Duty Floating Workbed Machine
Location
Arriving in our warehouse soon
Weight (kgs)
2606
External Dimensions (WxDxH mm) [?]
2100 x 2150 x 2130mm
Delivery
Your delivery options

Description

This pre-owned Ellesco Grindingmaster is a premium industrial metal working multi-finishing machine, featuring a GR-3200-600mm wide belt. This has a powerful motor allowing it to process the toughest and heaviest jobs around, suitable for high levels of stock removal. Max working height 150mm. Known as a Slag Grinder because of it's ability to remove tough slag or very heavy burrs in one pass.

Typical Applications:

  • Known as a slag grinder.
  • Stock removal of multiple individual parts and sheet materials.
  • Sizing and finishing of parts and sheet materials.
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.
  • Grain finishing of any material.
  • Satin finishing of metal sheet and strip.

Features Include

  • Centralised operator control panel
  • Full 600mm working width with both the abrasive belt and abrasive roll heads.
  • Wide belt head with fine adjustments of contact roll, 160mm overall working height clearance.
  • Floating conveyor bed on 4 heavy duty precision spindles,
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls.
  • Single point thickness setting
  • Electronic digital thickness read-out
  • Frequency controlled feed motor with conveyor reverse for set-up.
  • Variable speed table motors
  • Fixed conveyor table
  • Dust extraction hood facility and duct work to enable connection to Dust extractor (not included)

Head Details (Both head 1 and Head 2)

  • 180mm Ø  Grooved hard rubber coated contact roller
  • Power 30Kw / 40 Hp
  • Feed 22M/Sec

Table Details

  • Floating work conveyor bed
  • 2.2Kw conveyor drive
  • feed, 4 to 20M/Min

Additional Details

  • Enclosed heads and motors for minimising noise levels
  • Front edge safety bump stop
  • Lindamatic digital read out

pdf icon Print / Download Ellesco Grindingmaster 3000 - (Slag Grinder) Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
