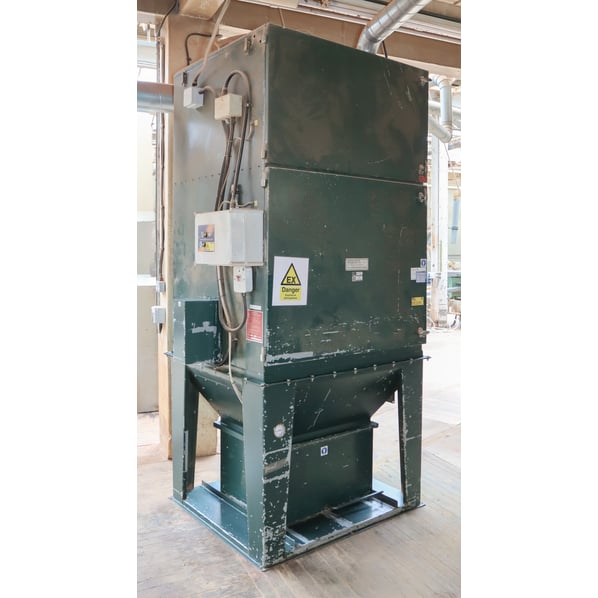

Filtex FX375 Dust Extractor with Explosion Relief Panel

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
18 December 2025 12:00 GMT while stocks last
Part of a Direct Site Clearance
World Leading Filtex Dust Extractor Clearance
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Book Appointment
Stock No
EE2250
Manufacturer
Filtex
Model
FX375H
Year of Manufacture
1998
Serial
8577
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
3000 cfm @ 7.0” swg 5100 m3/Hr @ 178mm
Filter Area ft² / m²
375ft2 / 34m2
Other Info
ABB Motor, Explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1450 x 1080 x 2700mm
Delivery
Your delivery options

Description

This FX375H is self-contained, high efficiency, envelope type units of compact design. Incorporating a fan, motor & filter assemblies with mechanically operated shaking mechanisms and are designed to accept combinations of fan volume/cloth area to meet varying applications in the industry. Comes with an explosion relief panel.

The Filtex FX375 H incorporates a fan, motor and dual filter assemblies with mechanically operated shaking mechanism, designed to accept combinations of fan volume/cloth area to meet the varying applications in industry.

Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or either filters.

The automatic electrical shaking mechanism control unit consists of contactors and time delay relays, so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and reset.

Technical Specifications

  • Capacity - 1500-3000cfm  // 2550-5100m³/h @ 1750pa
  • Fan size - 7.5kW // 10Hp
  • Explosion relief panel
  • Bin capacity - 5.8ft³  // 165 litres
  • Noise level - 76dB(A)
  • Bucket balance for use with bin liners
  • Electrical - 3ph 415 Volt 14.7Amps

Factors to Consider for Your Next Dust Extractor

When implementing the safety measures to ensure minimal risk to your workers, the factors to consider when purchasing your extraction unit/system are:

  • Dust Source - Does the process that produces dust occur in an enclosed or open area?
  • Capacity - Does the extractor have a large enough filter area required to handle the volume of dust?
  • Type of Dust – Do you need an extractor capable of handling dust at risk of self-igniting?
  • Maintenance – Would a self-cleaning extractor with an automatic shaker cycle be more suitable for you?

For further guidance, find out how to carry out your own COSHH (Control of Substances Hazardous to Health) risk assessment at the HSE website to help calculate your requirements.

What are Shaker Dust Collectors?

Shaker Dust Collectors contain a number of woven bags, which are fixed onto rails and use their surface area to capture dust as it is drawn through the extraction unit by its fan.

Bags are periodically cleaned by rapidly shaking the bags through a shaker motor and linkage system which removes the filtered dust from the bags and into a collection bin.

These units are commonly used in foundries, steel mills, the mining industry, power plants, and smelting industries.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

pdf icon Print / Download Filtex FX375 Dust Extractor with Explosion Relief Panel Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
