Machines & equipment for sale

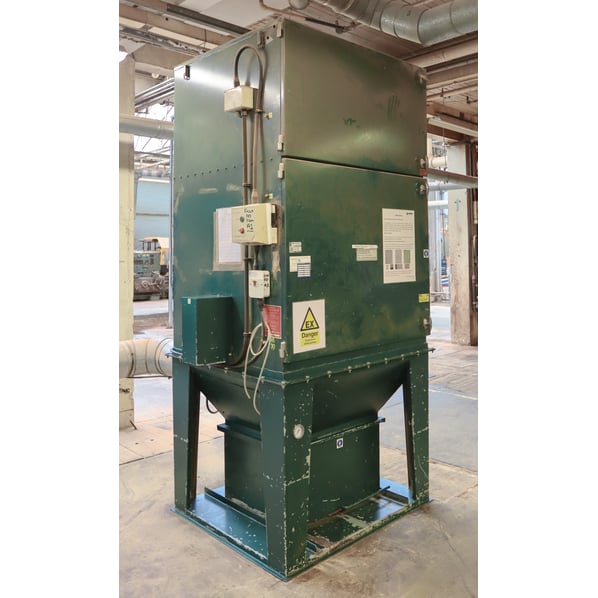

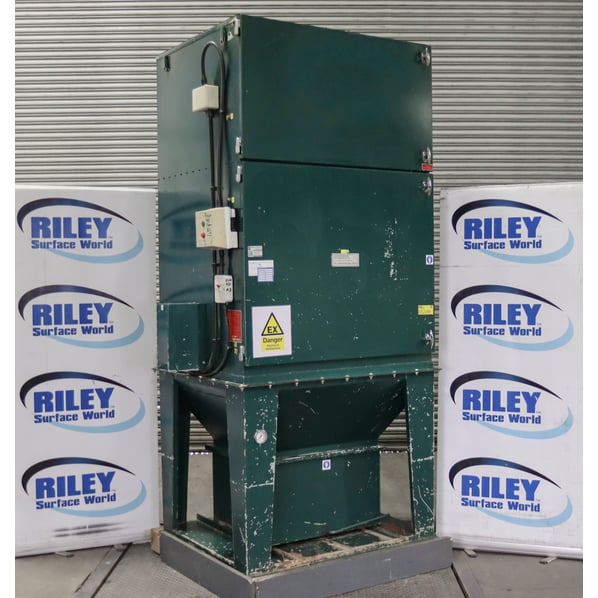

Filtex FX440 Dust Extractor with Explosion Relief Panel

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
18 December 2025 12:00 GMT while stocks last
Part of a Direct Site Clearance
World Leading Filtex Dust Extractor Clearance
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Book Appointment
Stock No
EE2249
Manufacturer
Filtex
Model
FX440 H
Year of Manufacture
1998
Serial
8575
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
3525CFM // 6000m3/Hr
Filter Area ft² / m²
440ft2 // 40.8m2
Other Info
ABB Motor. Explosion relief panel.
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1450 x 1080 x 2700mm
Delivery
Your delivery options

Description

This preowned FX440 H dust extractor delivers powerful & reliable performance with its 7.5kW / 10Hp motor. Designed for versatility, it efficiently handles a wide range of fine dust types across multiple industrial applications and includes an explosion relief panel.

A completely self-contained dust collector with an integral fan, acoustic attenuator and automatic controller, the FX uses high efficiency envelope filter elements to cope with anything from fine & light dusts to heavy & abrasive dusts. The FX is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes. The FX benefits from standard zintec steel for even more demanding environments.

The FX filter performance enables the recirculation (in some circumstances) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

Specifications

  • 7.5kW // 10Hp motor
  • Explosion relief panel
  • Shaker motor filter cleaning
  • Tall hopper for large bag dust collection
  • 27 filter bags

What are Shaker Dust Collectors?

Shaker Dust Collectors contain a number of woven bags, which are fixed onto rails and use their surface area to capture dust as it is drawn through the extraction unit by its fan.

Bags are periodically cleaned by rapidly shaking the bags through a shaker motor and linkage system which removes the filtered dust from the bags and into a collection bin.

These units are commonly used in foundries, steel mills, the mining industry, power plants, and smelting industries.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

Factors to Consider for Your Next Dust Extractor

When implementing the safety measures to ensure minimal risk to your workers, the factors to consider when purchasing your extraction unit/system are:

  • Dust Source - Does the process that produces dust occur in an enclosed or open area?
  • Capacity - Does the extractor have a large enough filter area required to handle the volume of dust?
  • Type of Dust – Do you need an extractor capable of handling dust at risk of self-igniting?
  • Maintenance – Would a self-cleaning extractor with an automatic shaker cycle be more suitable for you?

For further guidance, find out how to carry out your own COSHH (Control of Substances Hazardous to Health) risk assessment at the HSE website to help calculate your requirements.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

pdf icon Print / Download Filtex FX440 Dust Extractor with Explosion Relief Panel Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
