Filtex FX375 Dust Extractor - 7.5kW / 10 Hp

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
12.5% BP will be added to your invoice
Buy Now Price [?]
£ 2,000 (+ VAT)
Loading Contribution [?]
£ 50 (+ VAT)
Part of an Auction
Warehouse Clearance - Now closes 14th & 15th October

Login or Register to Buy Now

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
EE2248
Manufacturer
Filtex
Model
FX375
Year of Manufacture
1997
Serial
8381
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
3000 // 5100
Filter Area ft² / m²
375 // 34.80m2
Other Info
ABB Motor
Location
Warehouse Clearance - Now closes 14th & 15th October
Weight (kgs)
300
External Dimensions (WxDxH mm) [?]
1430 x 1080 x 2650mm
Delivery
Your delivery options

Description

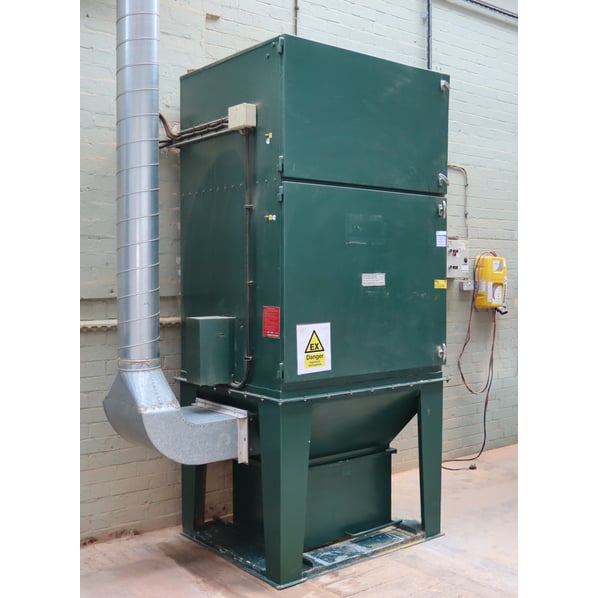

This preowned FX375 H dust extraction unit offers exceptional versatility and performance, powered by a 7.5kW / 10Hp motor. Engineered for efficiency, it effectively filters a wide variety of fine dusts across multiple industrial applications.

A completely self-contained dust collector, with integral fan, acoustic attenuator and automatic controller the FX uses high efficiency envelope filter elements to cope with anything from fine and light dusts through to heavy and abrasive dusts.

This FX comes complete with a separate spark suppression box which helps eliminate the danger of bag fires when used on spark generating processes such as fettling and linishing.

The FX is designed to accept combinations of air volumes and filtration areas to meet varying applications of intermittent processes.

The FX benefits from standard zintec steel for even more demanding environments.

The FX filter performance enables the recirculation (in some circumstances) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

The above design duties are based on an 8:1 cloth to air ratio. Polyester needlefelt filter media. Other filter medias are available when purchasing refurbished price point.

Fan Duty of the FX375 H

  • Heavy dusts - 4000m³/h @ 1750pa
  • Medium dusts - 3000m³/h @ 1750pa
  • Light dusts - 2000m³/h @ 1750pa

Details

  • Filter cloth area - 375 // 34.80m²
  • Fan motor - 7.5kw / 10Hp
  • Overall dimensions - 1161mm x 998mm x 2670mm
  • Bin capacity - 175 Litres

Power Supply

  • 380 - 420 Volt
  • 50 Hz
  • 2855 Rev/Min Motor speed

Condition

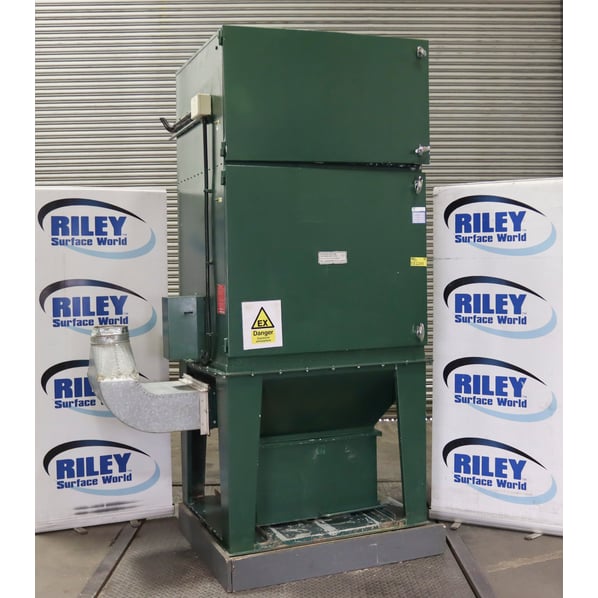

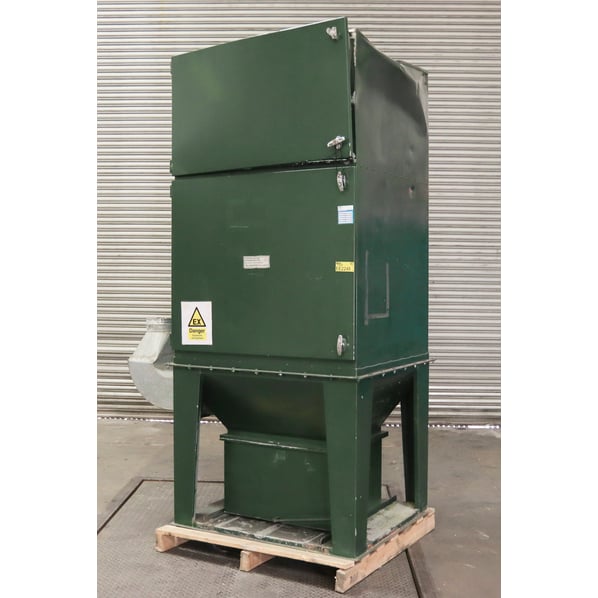

Please note the condition of this dust extractor as show in the photos.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

What is Dry Dust Extraction?

The most popular dust extraction method, dry dust extractors collect dust using filters and cartridges. Known for processing large volumes of air when filtering medium/large dust particles such as wood, flour, and metals.

They typically include a cleaning system to discharge the dust gathered within the filters and cartridges, they carry out a shaker cycle or reverse pulse cycle to free the collected dust and empty it into a removable storage bin.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

Factors to Consider for Your Next Dust Extractor

When implementing the safety measures to ensure minimal risk to your workers, the factors to consider when purchasing your extraction unit/system are:

  • Dust Source - Does the process that produces dust occur in an enclosed or open area?
  • Capacity - Does the extractor have a large enough filter area required to handle the volume of dust?
  • Type of Dust – Do you need an extractor capable of handling dust at risk of self-igniting?
  • Maintenance – Would a self-cleaning extractor with an automatic shaker cycle be more suitable for you?

For further guidance, find out how to carry out your own COSHH (Control of Substances Hazardous to Health) risk assessment at the HSE website to help calculate your requirements.
