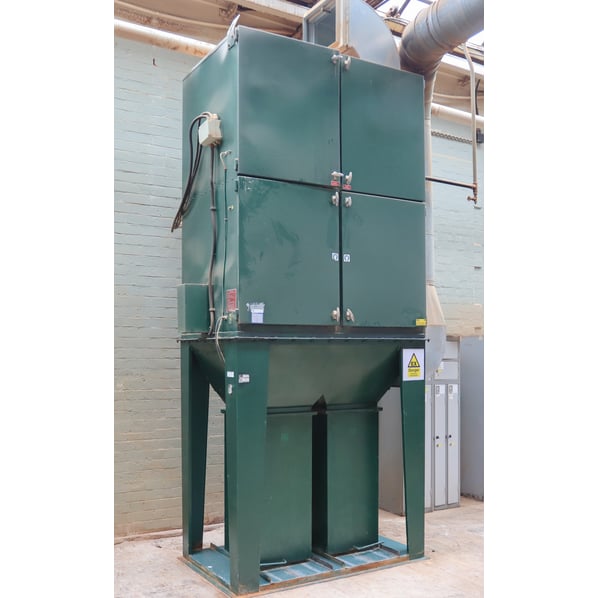

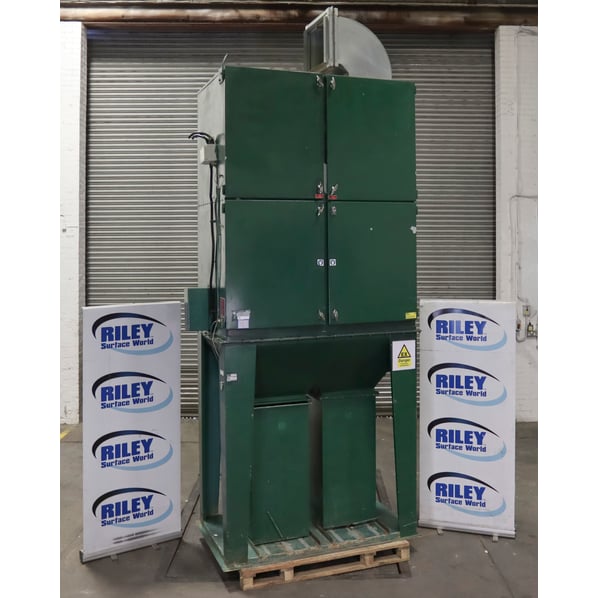

Filtex FX600 F Dust Extractor with Explosion Relief Panel - 7.5kW / 10Hp

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
18 December 2025 12:00 GMT while stocks last
Part of a Direct Site Clearance
World Leading Filtex Dust Extractor Clearance
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Book Appointment
Stock No
EE2243
Manufacturer
Filtex
Model
FX600
Year of Manufacture
2000
Serial
9304
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
2400 - 4800 // 4085 - 8165
Filter Area ft² / m²
600 // 55.74m2
Other Info
Tec Motor, Explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
750
External Dimensions (WxDxH mm) [?]
1900 x 10/80 x 3800mm (4350)
Delivery
Your delivery options

Description

This preowned FX600 F dust extractor delivers powerful and reliable performance with its 7.5kW / 10Hp motor, making it ideal for managing a wide range of fine dust applications. Versatile, efficient and built for safety, it also features an explosion relief panel.

The FX600  is a fully self contained free standing, high efficiency, dust reduction and elimination extractor complete with fully automatic electrical shaking mechanism.

This Dust abatement machine features a large dust holding capacity with 3ft³ bucket. (TBC)

The body incorporates individual access doors with quick release fasteners for ease of inspection of the filter bags and fan.

Suitable for dry dust environments such as carpentry shops, engineering, cement works, paper mills and gypsum works to name but a few.

The unit incorporates a 7.2kW // 10 hp fan, motor and dual filter assemblies with mechanically operated shaking mechanism,  designed to accept combinations of filter cloths to meet varying applications in industry.

Features Include

  • Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or either filters sets.
  • 7.5kW // 10 Hp high performance fan set.
  • Explosion relief panel.
  • Automatic electrical shaking mechanism control unit consists of contactors and time delay relays, so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and resets.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

Factors to Consider for Your Next Dust Extractor

When implementing the safety measures to ensure minimal risk to your workers, the factors to consider when purchasing your extraction unit/system are:

  • Dust Source - Does the process that produces dust occur in an enclosed or open area?
  • Capacity - Does the extractor have a large enough filter area required to handle the volume of dust?
  • Type of Dust – Do you need an extractor capable of handling dust at risk of self-igniting?
  • Maintenance – Would a self-cleaning extractor with an automatic shaker cycle be more suitable for you?

For further guidance, find out how to carry out your own COSHH (Control of Substances Hazardous to Health) risk assessment at the HSE website to help calculate your requirements.

What is Dry Dust Extraction?

The most popular dust extraction method, dry dust extractors collect dust using filters and cartridges. Known for processing large volumes of air when filtering medium/large dust particles such as wood, flour, and metals.

They typically include a cleaning system to discharge the dust gathered within the filters and cartridges, they carry out a shaker cycle or reverse pulse cycle to free the collected dust and empty it into a removable storage bin.

What are Shaker Dust Collectors?

Shaker Dust Collectors contain a number of woven bags, which are fixed onto rails and use their surface area to capture dust as it is drawn through the extraction unit by its fan.

Bags are periodically cleaned by rapidly shaking the bags through a shaker motor and linkage system which removes the filtered dust from the bags and into a collection bin.

These units are commonly used in foundries, steel mills, the mining industry, power plants, and smelting industries.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

pdf icon Print / Download Filtex FX600 F Dust Extractor with Explosion Relief Panel - 7.5kW / 10Hp Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
