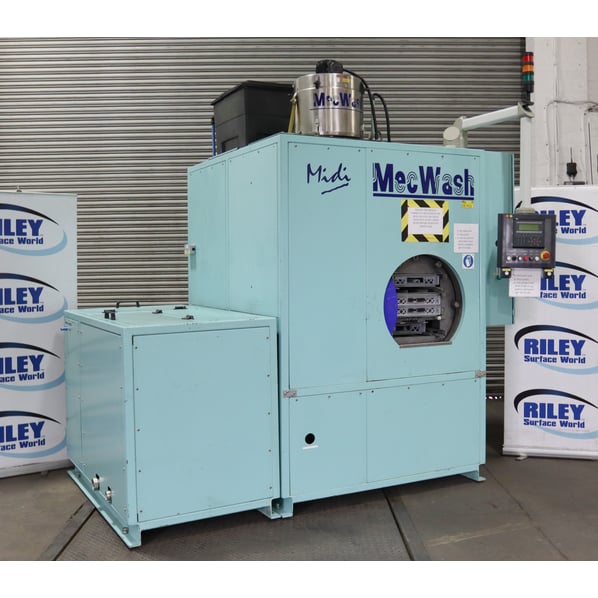

MecWash Midi 400 Special, Wash, Rinse & Dry Cleaning System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DE1602
Manufacturer
MecWash
Model
Midi 400 Special
Year of Manufacture
10/2001
Serial
M292
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
425 x 590 x 370mm
Process Stages
Multiple - Variable
Other Info
Flood & Spray Wash, Spray Rinse & Dry
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3500
External Dimensions (WxDxH mm) [?]
2675 x 2300 x 2450mm
Delivery
Your delivery options

Description

The Mecwash Midi 400 special offers ultimate flexibility for aqueous component cleaning and degreasing in a single-chamber, multi-process system. Combining high-volume, low-pressure spray and flood washing with hot air and vacuum drying, it delivers exceptional cleaning and drying performance for the highest quality results.

Precision Parts Washing & Drying System

The Midi provides the ultimate flexible aqueous component cleaning & degreasing systems. The systems high flow washing, rinsing, and vacuum drying to provide the highest quality of component cleaning and drying available.

The rinse stage can also be used to apply a longer term corrosion inhibitor for ferrous components or conversion coatings for surface preparation prior to plating or painting.

The Midi machines are also perfect vehicles for the most complex shapes, with blind holes, oil & fuel ways and internal galleries. Designed to process complex and intricate machined or pressed parts that require very high standards of cleanliness, surface finish and dryness, including the removal of all types of contamination from soluble and mineral oils to greases, polishing compounds, lapping pastes and dye penetrants.

From basic baskets and manual loading through sliding load pallets and automated conveyors to robotics, the Midi integrate easily with any production layout.

Aqueous Cleaning Process

These machines are designed to accommodate standard baskets and containers or individually tailored fixtures. The versatility of our aqueous cleaning process gives you total flexibility to address various disparate components in one machine.

The MecWash process combines rotating or the gentle rocking of components held securely in baskets, fixtures or plastic containers about the horizontal axis and subjecting them to a high volume spray or flood process producing a powerful washing action that fully penetrates the workload.

Benefits of the Midi Parts Washer

  • Satisfies the high demands of the aerospace, automotive, defence, petrochemical, medical, and other precision industries.
  • Highly durable specification, combines precision cleaning with 24 x 7 dependability.
  • Numerous tailored options to fit the customer's exact cleaning demands and automation requirements.
  • Over 300 systems supplied to blue chip automotive and aerospace engineering companies around the world.

Specifications

  • Overall machine size (WxDxH) - 2750mm x 1650mm x 2250mm (TBC)
  • Machine unladen weight - 3500kg
  • Wash chamber size (WxDxH) - 470 x 620 x 400mm (TBC)
  • Maximum load weight - 100kg
  • Load height - 1050mm (TBC)
  • Basket rotation/oscillation speed -  2-9 rpm
  • Noise level - 75 dBA
  • Max temperature - 80°C
  • Electrical supply - 400v / 50Hz / 80A
  • Wash/rinse tank capacities - 700/370 litres
  • Detergent dosing units
  • Beijer Electronics E300 HDMI controller
  • Wash temperature, rinse temperature and hot air temperature digital controllers
  • Vapour condenser

pdf icon Print / Download MecWash Midi 400 Special, Wash, Rinse & Dry Cleaning System Datasheet

Additional files

Brochure

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
