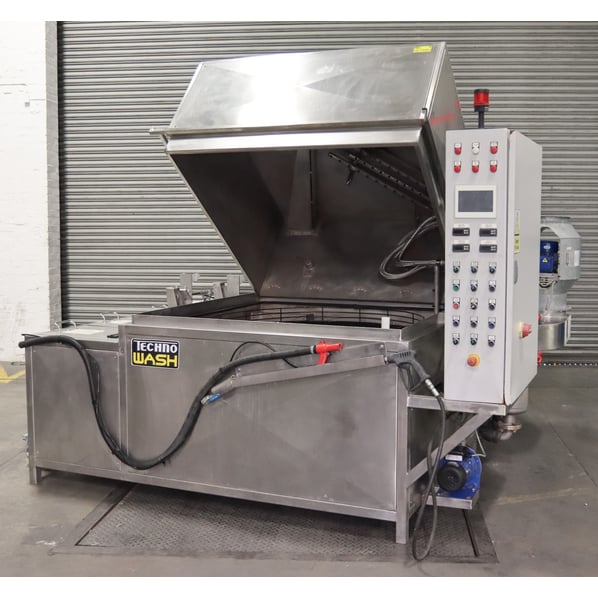

Technowash (Wheelabrator) AQT 1250/4 Top Loading 4 Stage Spray Wash.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
DE1597J
Manufacturer
Technowash
Model
AQT 1250/4
Year of Manufacture
06/2015
Serial
51246
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm) [?]
1250 Ø x 470mm
Process Stages
4 Stage + Spray lance.
Other Info
All Stainless Steel Construction
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1500
External Dimensions (WxDxH mm) [?]
3000 x 2000 x 1700mm (Lid down)
Delivery
Your delivery options

Description

Technowash TechSpray TM-Multi Stage AQT 1250/4 Top Loading Spray Wash machines have been designed specifically for batch cleaning of component parts to a very very high standard.

  • The Technowash Multi-Stage Top Loading range are a real alternative to the more common placed front loading range and offer valuable space savings, and a overall reduction in power usage.
  • Higher levels of component surface cleanliness are achievable when compared with conventional multi stage spray washers, whilst also maintaining the parts cosmetic stain free appearance.
  • The Omron PLC  processor process control, makes these machines extremely reliable, adaptable and allows the storage of many different wash and rinse programme cycles with any combination of the 4 available wet process and drying stages to provide the highest levels of cleanliness available.

Typical Applications:

  • Aerospace
  • Manufacturing
  • Hydraulics industry
  • OEM’s
  • Railway
  • General Engineering
  • Metal Pressings Industry
  • Metal Casting Industry
  • Printing Industry

Standard Features Include;

  • Double Skin Stainless Steel Construction with 35mm thick thermal/Sound Insulation.
  • 3 tanks, 3 pumps and 3 heaters.
  • Motorised, Heavy Duty Stainless Steel Component carrier and basket.
  • Gravity Fed Drain Tap with pump to drain break tank.
  • Corrosion Resistant electric Immersion heating elements.
  • Hinged Machine Lid with pneumatic lifting rams.
  • Manual nudge facility for ease of loading/unloading.
  • Lid safety Interlocks.
  • Micro Processor sequence controller.
  • Fluid temperature control.
  • Drying heater temperature control.
  • Wash process cycle timers.
  • Low fluid level protection.
  • High volume Stainless Steel wash pumps.
  • Integral and external coarse and fine levels of fluid filtration.
  • Multiple Stainless steel spray bar and air knife arrangements.
  • Oil separator.
  • Deionised water quality monitoring.
  • Auto fresh water refill.
  • Auto deionised water refill.
  • Bifurcated steam extraction fan.
  • Hot wash, hot rinse, hot Di rinse, air Knife / hot dry cycles to suit application.
  • Waste effluent pump.
  • Spray lance.
  • Vacuum hose.
  • Separate coalescing filter unit.

pdf icon Print / Download Technowash (Wheelabrator) AQT 1250/4 Top Loading 4 Stage Spray Wash. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
